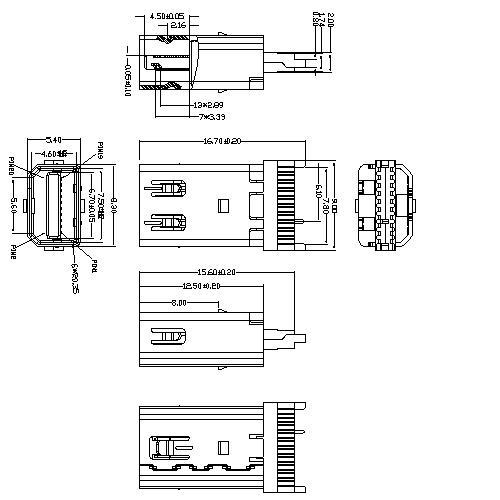

mini display receptcle solder type

mini display receptcle solder type

NOTES:
1. MATERIAL
1.1 HOUSING:Hi-TEMP PLASTIC (UL94-V-0),BLACK
1.2 CONTACT:COPPER ALLOY(=0.20),
PLATING:COLD PLATED ON CONTACT AREA,
TIN PLATED ON SOLDER TAILS UNDER
NICKEL PLATED.
1.3 SHELL:BRASS(T=0.40),PLATING:NICKEL PLATED,
1.4 SPRING SHELL: STAINLESS SUS304 T=0.20mm
1.5 COVER: HI-TEMP.PLASTIC(UL94V-0)BLACK,
2. SPECIFICATION:
21 CURRENT RATING: 0.5 A
2.2 CONTACT RESISTANCE: 30m[ MAX.
2.3 DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
R.M.S FOR ONE MINUTE.
2.4 INSULATION RESISTANCE: 100M [ MIN AT 500V DC.
2.5 OPERATING TEMPERATURE: -25 T0+85
2.6 DURABILITY: 10000 CYCLES.
2.7 MATING FORCE: 4.5KG MAX.
2.8 UNMATING FORCE: 1.0KG MIN
