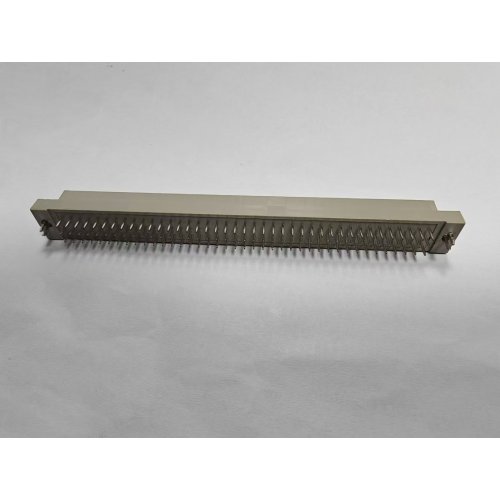

DIN41612 Vertical Female Connectors 120 Positions

DIN41612 Vertical Female Type R Connectors 120 Positions

Specifications:
1.Material And Plating:
 1.1 Housing:PBT+5%PC UL94V-0
 1.2 Contacts:Phosphor bronze
 1.3 Contact Plating:
     G=Gold flash plated all over,Ni under plated all over
     T=Tin platd all over,Ni under plated all over
     S=Gold flash plated on contact area,Tin PLATED ON
       SOLDER TAIL,Ni under plated all over
2.Electronical Characteristic:
 2.1 Current rating:2 AMPS
 2.2 Contact resistance:20 mΩ
 2.3 Insulation resistance:1000 MΩ min @500V DC
 2.4 Dielectric withstanding voltage:1000V AC/minute
 2.5 Operating temperature:-55°C to +125°C
