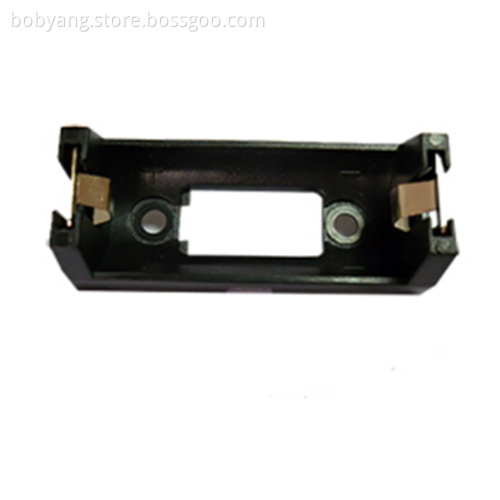

CR123A Battery Holder pressure contacts

Specifications:

Part Number	BT-S-SI-R-123A-C
Description	CR123A Battery Holder pressure contacts
Also Accepts	CR2/3A
Height Above PCB	14.07 mm
Packaging	Tray
Standard Package	100 pieces
Plastic
Material	PBT+30%GF Black
Color	Black
Flammability	UL 94V-0
Metal
Material	0.3mm thick stainlss steel nickel plated
Termination	PC pins
Other
COO	China
Product Family	cylindrical
RoHS	Compliant

CR2 and CR123A Lithium Battery Holders Dimensions:

Coin Cell Holders FOR 123A BT-S-SI-R-123A-C

Choose CR2 and CR123A Lithium Battery Holders
A broad selection of polarized SMT and THM, CR2 and CR123A lithium battery holders has joined the Antenk roster
Image of Antenks' CR2 and CR123A Lithium Battery HoldersWith polarized contacts as a principal design feature, these advanced design holders from Antenk accommodate all CR2 or CR123A batteries from major manufacturers.

Equipped with heat resistant nylon housings, the entries are suited for traditional soldering and reflow processing.

Surface Mount types feature gold-plated phosphor-bronze contacts assuring low contact resistance and superior solder joints where lead-free soldering or reflow processes are employed.

Thru-Hole Mount versions are equipped with tin-plated phosphor-bronze contacts.

applications for CR2 and CR123A Lithium Battery Holders
OEM photographic

medical

consumer

industrial electronics.
