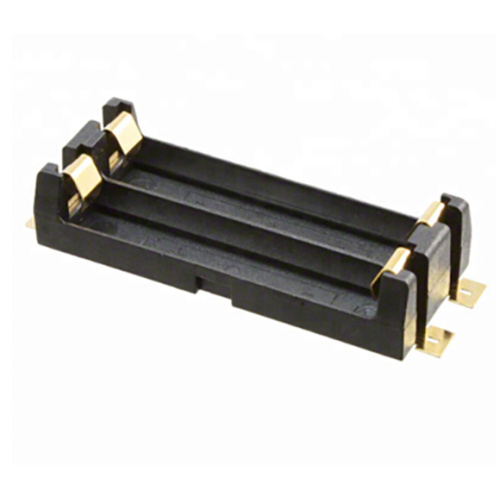

Battery Holder AA x 2 PCB Surface Mount

Battery Holder, AA x 2, PCB, Surface Mount

Specifications:
Battery Sizes Accepted: AA
No. of Batteries: 2
Battery Holder Mount: PCB, SMD
Base Mat'l:Heat Resistance Nylon(UL94V-0)
Contacts Mat'l:0.30THK Stainless Stell,
Finish: Gold Flash,over nickel plate

Surface mount SMD. 2 AA Battery Holder

Dimensions

Options of  Battery Holders for Custom

Apperance for the product
M:SMT TYPE
S:180 TYPE
R:90 TYPE

Contact PIating
SI: NICKEL Plated
GO:GOld flash    G1: 3U〞Gold
G2: 5U〞Gold     G3:10U〞Gold
G4:15U〞Gold     G5:30U〞Gold

Packing method
A: Tray packing
R: Tape & reel packing

Antenk offers a large selection of AAAA, AAA, and AA battery holders with springs or pressure contacts.

Antenk's battery holders hold from one to eight batteries and are available with printed circuit pins, wire leads, 9 V type snap fasteners, or solder lugs. Standard connectors can be terminated on the wire leads as an option and are great time savers. Antenk`s holders feature series connection, but can be ordered as parallel connections. A few standard products are both series or parallel by design. The bodies are made with either a polypropylene plastic with a UL94-HB flammability rating or a nylon plastic with a UL94-V-0 flammability rating.

Features
Nylon plastic battery holders:
Available with printed circuit pins or wire leads for easy yet reliable connections
Nylon offers twice the overall strength of PP
Significantly higher impact resistance
Better overall temperature range
UL94-V-0 flammability rating
Polypropylene plastic battery holders:
Made with nickel plated steel springs
Available with PC pins, wire leads, 9 V snap fasteners, or solder lugs
UL94-HB flammability rating
