CR2330 Coin Cell Battery Holders DIP

Antenk's CR2330 lithium coin cell Holders DIP/Thru Hole Mount (THM)/with PC Pin

Specifications

1.MATERIALS:
  HOUSING-PBT
  CONTACT-PHOSPHOP BRONZE,
2.FLASH:0.25mm MAX
3.CAMBER:0.13mm MAX. DEFORMATION:NA.
  WARP:0.13mm MAX.TWIST:NA

4,Termination PC pins

Also Accepts: CR2320, BR2320, BR2325, CR2330, BR2330, CR2335, BR2335 can also fit other smaller cells

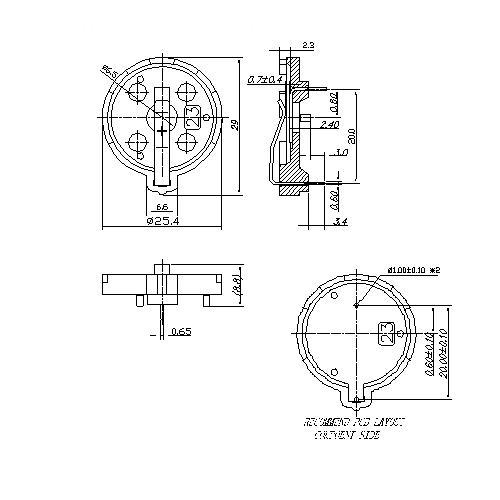

 CR2330 Coin/Button Cell  Socket Holder Case DIP Dimensions:

CR2330 Holder with PC pins  Install Diagram

Antenk's CR2330 Coin Cell Battery Holders

CR2330 coin cell battery holders by Antenk are available in many styles and with various options so that we always have a part to fit your design. Our rigorous engineering and testing standards ensure that our parts are manufactured with the highest quality, making us certain that one of our award-winning designs will provide you with the best solution. In our site you can use to find the right coin cell battery holder for your specific needs.

CR2330 Coin Cell Battery Holders are grouped by Termination Style
PC pins
Surface mount
