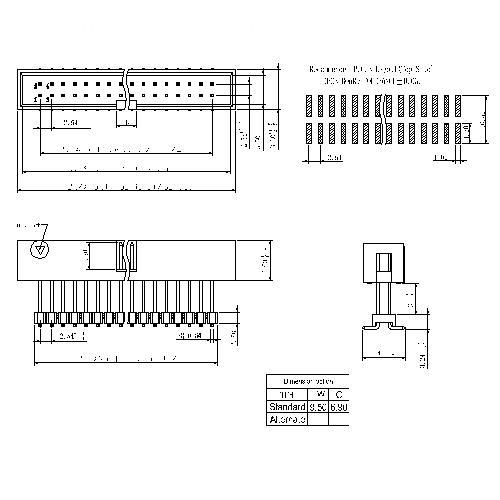

2.54mm Box Header SMT H=9.0 Add Housing Connection

The main supporting fields of electrical connectors include transportation, communication, network, IT, medical, home appliances, etc. The rapid development of product technology in the supporting fields and the rapid growth of the market have strongly led the development of connector technology. So far, the connector has developed into a series of products and specialized products with complete product categories, rich variety specifications, diverse structural types, professional direction subdivision, obvious industry characteristics, and standard system specifications.

   SPECIFICATION
Current Rating:                       3.0Amp
Insulation Resistance:            1000MΩ  min
Contact Resistance:               20MΩ  max
 Withstand Voltage:                500V AC/DC
Operating Temperature:         -40°C  to  +105°C
Contact Material:                    Brass
Contact Plating:                      Au or Sn Over Ni
Insulator Material:                   PA6T  UL 94V-0
