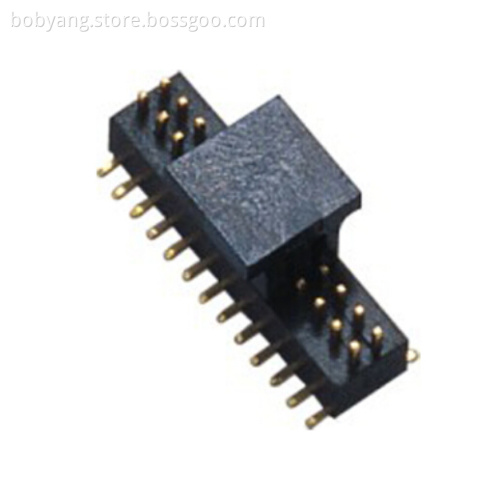

0.5mm Board to board connector male double groove

Board-to-board connector failure handling, when the board-to-board connector is broken, it may be caused by broken wires during use, poor connector contact, and loose connector terminals. Since the failure of the wire to break in the middle is very rare, most of them are disconnected at the connector. Therefore, the inspection should focus on carefully checking the sensor and the wire connecting the cable, if there is looseness and poor contact.

Product Information:

1.Series NO:0.5mm Board to Board connecter

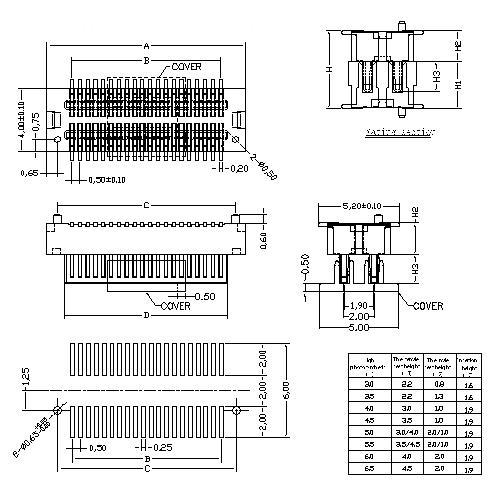

2.mating Height:
  H=3.00mm/3.50mm/4.00mm/4.50mm/5.00mm/5.50mm/6.00mm/6.50mm

3.Packing
T:Tube  A:Tray
B:Bag   U:Tube+CAP
R:tape&Reel
W:tape&Reel+CAP

Electrical:
Vlotag Rating:50V AC(rms)/DC
Current Rating:0.5A AC(rms)/DC
Contact Resistance:50mΩ Max
Insulation Resistance:100MΩ min
Dlelectric Withstanding Voltage:200V
AC r.m.s
Operting Temperature:-30℃~+80℃
Materirls
Housing:High Temperature Plastic
UL94V-0
Terminal:Copper Alloy
Material:PA9T
Contact:phosphor Bronae,Gold Plating;
