Side Entry PCB RJ45 Modular Jack

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: ShenZhen, ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	ShenZhen,ShenZhen

Product Description

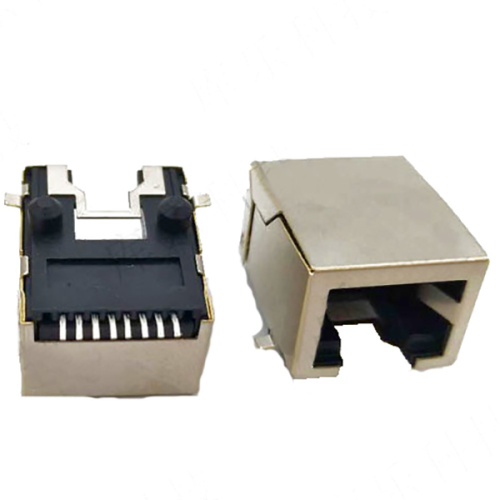

RJ45 SIDE ENTRY PCB JACK SMT W/SHIELD WITHOUT EMI&LED WITH FORK

Specifications:
ELECTRICAL：
1.CURRENT RATING:1.5A
2.VOLTAGE RATING:125V AC
3.INSULATION RESISTANCE:1000MΩ Mini
4.WITHSTAND VOLTAGE:AC 1000 V RMS 60Hz 1 Min
5.CONTACT RESISTANCE:30mΩ Max
MATERIAL:
1.OPERATING LIFE:750 CYCLES Min；
2.HOUSING MATERIAL:HIGH TEMP <FR52>UL94V-0
3.CONTACT MATERIAL:PHOSPHOR BRONZE T=0.35MM
4.PLATING:GOLD PLATING OVER NICKEL
5.PCB RETENTION PRE-SOLDER:1LB MIN
6.PCB RETENTION PRE-SOLDER:10LBS MIN
ENVIRONMENTAL:
1.STORAGE:-40℃∽85℃
2.OPERATION:-40℃∽85℃
3.REFLOW SOLDERING TEMPERATURE:255°C TO 265°C 5-10
SECOND.MATES WITH MODULAR PLUG CONFORMING TO FCC
PART 68,SUBPART F.
