6P6C RJ11 Jack Side entry Full Plastic

$500.00

≥1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air, Express

Port:: ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CFR,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	ShenZhen,

Product Description

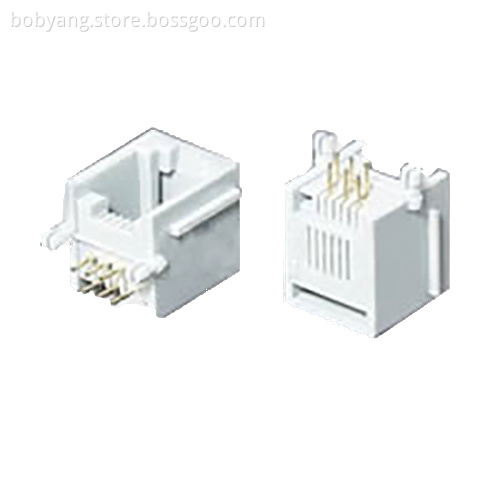

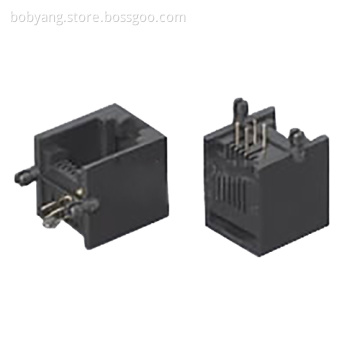

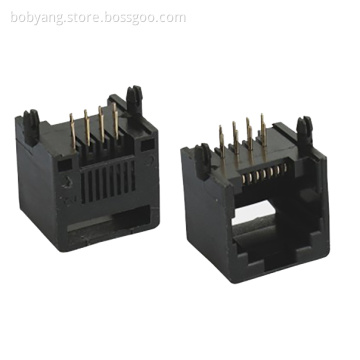

RJ11 Jack Side entry, Full Plastic, with panel

Specifications

MATERIAL:
1.HOUSING MATERIAL:GLASS FILLED POLYESTER UL94V-0.
2.CONTACT MATERIAL:PHOSPHOR BRONZE t=0.30mm.
3.PLATING:SELECTING GOLD PLATING 3u"~50u"OVER
NICKEL IN CONTACT AREA.150u" TIN
PLATING OVER NICKEL IN SOLDER AREA
4.SHIELD: 0.20mmTHICKNESS COPPER ALLY WITH NICKEL PLATE

ELECTRICAL:
1.VOLTAGE RATING :125 VAC RMS.
2.CURRENT RATING :1.5AMP.
3.CONTACT RESISTANCE:30 MILLIOHMS MAX.
4.INSULATION RESISTANCE:500 MEGOHMS MIN @500V DC.
5.DIELECTRIC WITHSTANDING RESISTANCE
MECHANICAL:1000V AC RMS 50Hz. 1MIN.
1.DURRABILITY:750 CYCLES MIN.
2.PCB RETENTION PRE-SOLDER :1 LB MIN.
ENVIRONMENTAL:
1.STORAGE:-40°C TO 85°C.
2.OPERATION :0°C TO 70°C.
