Top entry 4P4C RJ11 Modular Jack

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CFR,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	ShenZhen,

Product Description

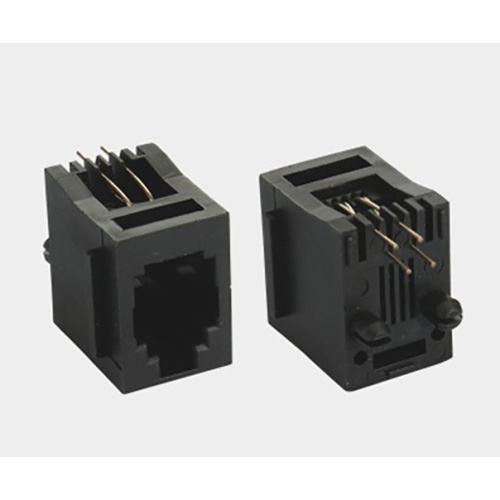

RJ11 Jack Top entry 4P4C full Plastic/4P4C RJ11 Jack Connector

Specifications:

MATERIAL:
1.HOUSING MATERIAL:GLASS FILLED POYESTER UL94V-0.
2.CONTACT MATERIAL :PHOSPHOR BRONZE t=0.3mm
3.PLATING :SELECTING GOLD PLATING 1μ~50μ"OVER
NICKEL IN CONTACT AREA.150μ" TIN
PLATIN.OVER NICKEL IN SOLDER AREA
4.SHIELD:0.2mmTHICKNESS COPPER WITH NICKEL PLATEI

ELECTRICAL
1.VOLTAGE RATING:125VAC RMS
2.CURRENT RATING:1.5AMP
3.CONTACT RESISTANCE:30MILLIOHMS MAX
4.INSULATION RESISTANCE 500MEGOHMS MIN @500V DC
5.DIELECTRIC WITHSTANDING RESISTANCE:1000V AC RMS 50Hz.1MIN

MECHANICAL
1.DURRABILITY:750 CYCLES MIN
2.PCB RETENTTON PRB-SOLDER:1 LB MIN
REVIRONMENTAL
1.STORAGE:-40°C TO 85°C

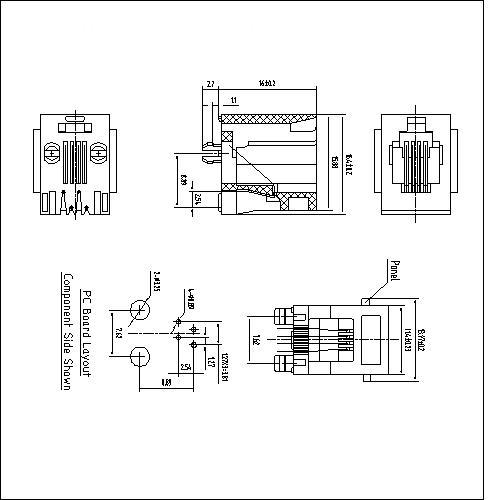

RJ11 Jack Top entry 4P4C full Plastic Dimensions:

ATRJ5221-4P4C-X-A-X-A
