ATX4.20mm 180°Wafer Connector Series With Harpoon

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	SHENZHEN,SHENZHEN

Product Description

Manufacturer :ANTENK ELECTRONICS., CO. LTD.

High quality, competitive price, fast delivery, quick reply. UL, Rohs, Reach passed.

Enterprise slogan: a group of people, one heart, work together, will win
Corporate Mission: Connecting the World and Connecting the Future
Corporate Vision: Become the First Brand of Famous Connectors
Values: Diligence, Gratitude and Honesty

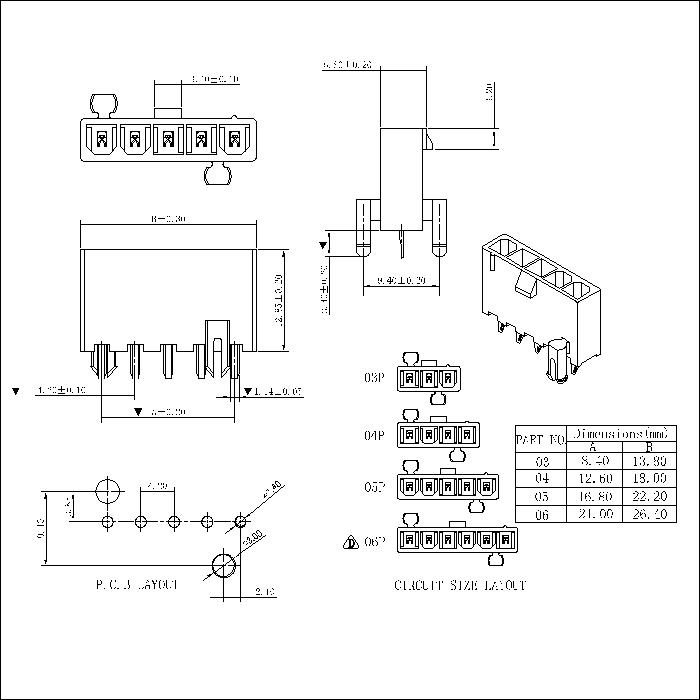

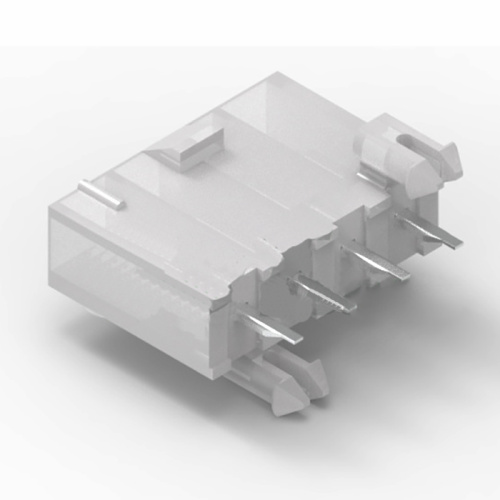

Product name:ATX4.20mm 180°Wafer Connector Series With Harpoon

AW4202VTH-1xNP-XXXX

SPECIFICATIONS
·Voltage Rating：600V AC.DC
·Current Rating：7A,AC,DC
·Withstanding Voltage：1500V AC/minute
·Insulation Resistance:1000MΩ min
·Temperature Range：-25℃-+85℃
·Contact Resistance：20mΩ max

WAFER
·Part NO：AW4202VTH-1xNP-XXXX
·Poles:02-06P
·Housing Material：Nylon66 UL94V-2 or UL94V-0
·Pin Material:Brass
·Contact Area Plating：Tin-Plated or Gold-Flash
·Mates With:AH4201 Single Row Receptacle
·The Dimension Marked“ ”Must Be Recorded
