2.54mm pitch 180°Wafer Connector Series AW2547V-NP

1.product introduction

Wire To Board Connectors is a product that connects different circuit boards together, its transmission capacity is better, and it is a good connector product in all connector product types at present, mainly used in financial manufacturing, medical equipment, communication networks, elevators, industrial automation, power systems, home appliances, office equipment, military manufacturing and other industries.The Wire To Board Connectors between the circuit board is different, and its type is different, and each type has its own characteristics.And Wire To Board Connectors will continue to evolve and adapt to new needs, bringing people a more efficient and reliable data transmission experience.

2.product parameter

 ■SPECIFICATIONS 规格
Voltage rating额定电压: 250V AC,DC
Current rating额定电流: 3A，AC, DC
Withstanding Voltage耐电压: 1500V AC/minute
Insulation resistance绝缘电阻: 1000MΩ min
Temperature range工作温度:-25°C ~+85°C
Contact resistance接触电阻: 20mΩ max

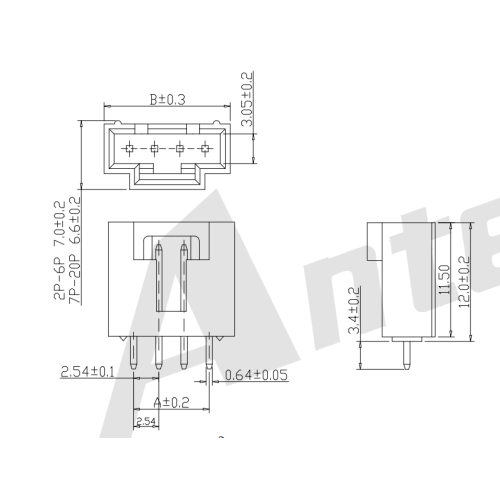

3.product picture
