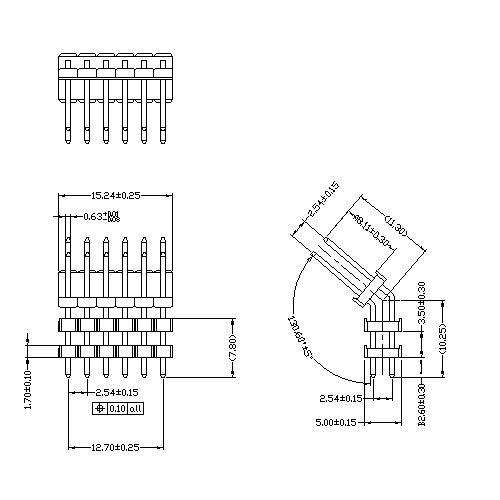

2.54mm pin header triple plastic bent 130 degree

Shenzhen Antenk Electronics Co., Ltd. launched a 2.54mm pin header triple plastic bent 130°degree  electronic product.

This type of connector is widely used in PCB circuit boards in electronics, electrical appliances, and meters. Its function is to function as a bridge between blocked or isolated circuits in the circuit, and is responsible for current or signal transmission. task. It is usually used in conjunction with the motherboard to form a board-to-board connection; or used in conjunction with an electronic harness terminal to form a board-to-wire connection; it can also be used independently for board-to-board connection.

SPECIFICATION
Current Rating:                       3 Amp
Insulation Resistance:            1000M ohms min
Contact Resistance:               20M ohms max
Dielectric Withstanding:          AC500V
Operating Temperature:          -65°C  to  +125°C
Contact Material:                    Brass
Insulator Material:                   PBT,UL 94V-0 Black
