2.54mmFemale Header Single Row Centipede foot Type H3.5
  • 2.54mmFemale Header Single Row Centipede foot Type H3.5
2.54mmFemale Header Single Row Centipede foot Type H3.5

2.54mmFemale Header Single Row Centipede foot Type H3.5

Payment Type:
T/T, Paypal, Western Union
Incoterm:
FOB, EXW
Min. Order:
1000 Bag/Bags
Min. Order:
1000 Bag/Bags
Delivery Time:
12 Days
Transportation:
Ocean, Air, EXPRESS
Port:
SHENZHEN, SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 100KKPCS/Month
Supply Ability: 1
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,EXW
Certificate: ISO9001-2015
HS Code: 8536909000
Transportation: Ocean,Air,EXPRESS
Port: SHENZHEN,SHENZHEN
Product Description
Product Description

Manufacturer :ANTENK ELECTRONICS.,CO LTD.

High quality, competitive price, fast delivery, quick reply. CE, Rohs, Reach passed.


Pin headers and female socket connectors in 2 to 40 contacts single in line, 4 to 100 contacts dual in line and 9 to 120 contacts in triple in line. Capable of 3.0A per circuit with a dielectric withstanding voltage of 600V AC and operating temperature range of -40°C to 105°C. Mated board to board connector pairs offer 100 insertion cycles durability.

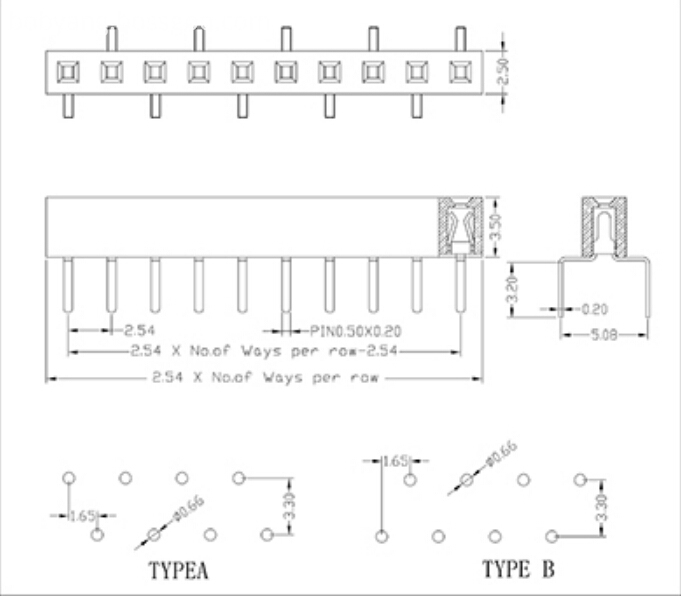

Available in single, dual row and triple row in through hole (TH) and surface mount (SMT). Headers and sockets available in both vertical and horizontal orientation. Pin spacing is 2.54mm (.100") between pins and rows.




 SPECIFICATION
Current Rating:                       3.0 Amp
Insulation Resistance:            1000M ohms min
Contact Resistance:               20M ohms max
Dielectric Withstanding:          AC500V
Operating Temperature:          -65°C  to  +125°C
Contact Material:                    Brass

Insulator Material:                   PBT,UL 94V-0 Black

FHEU09-XXXX
