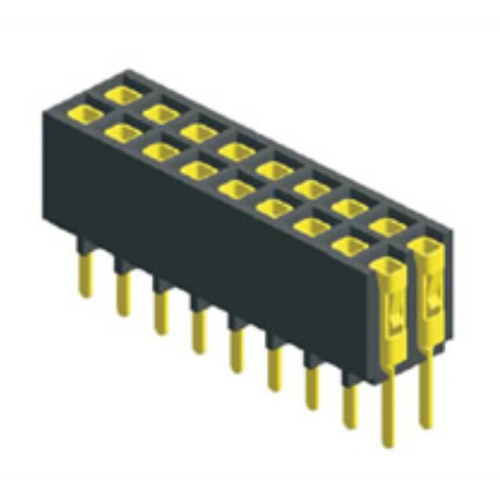

2.54mm Female Socket Dual Row Straight Type

Shenzhen Antenk Electronics Co., Ltd. launched a 2.54mm Female Header Dual Row Straight Type(W=5.8 H=6.8) electronic Socket cennector

This connector system is a double-row wire-to-board system. The system includes: split, hood and double body vertical and right angle heads; vertical and right angle sockets; plugs and sockets for SMT applications; crimp joints and dual circuit splitters.
The connector system is suitable for low power signal applications such as computers, medical instruments and automotive controls.
  SPECIFICATION

Current Rating:                       3.0 Amp
Insulation Resistance:            1000M ohms min
Contact Resistance:               20M ohms max
Dielectric Withstanding:          AC500V
Operating Temperature:          -65°C  to  +125°C
Contact Material:                    Brass
Insulator Material:                   PBT,UL 94V-0 Black
