2.00mm Pitch 180°Wafer Connector DIP Series

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	SHENZHEN,SHENZHEN

Product Description

Manufacturer :ANTENK ELECTRONICS., CO. LTD.

High quality, competitive price, fast delivery, quick reply. UL, Rohs, Reach passed.

Enterprise slogan: a group of people, one heart, work together, will win
Corporate Mission: Connecting the World and Connecting the Future
Corporate Vision: Become the First Brand of Famous Connectors
Values: Diligence, Gratitude and Honesty

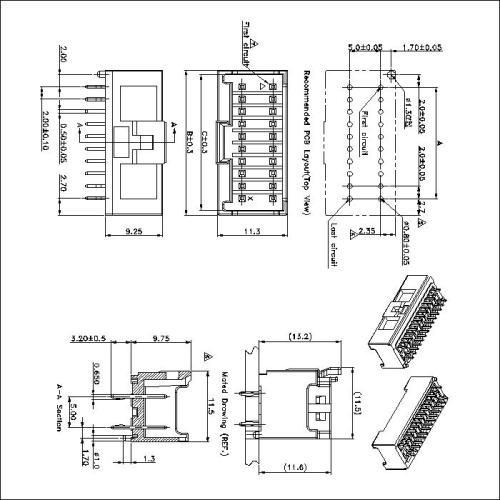

Product name: 2.00mm Pitch 180°Wafer Connector DIP Series

SPECIFICATIONS
·Voltage rating：250V AC/DC
·Current rating：3.0A,AC/DC(22#AWG)
·Withstanding Voltage：1000V AC/minute
·Insulation resistance:1000MΩ min
·Temperature range：-25℃-+85℃
·Contact Resistance:20mΩ MAX

WAFER
·Part NO：AW2014S-2xNP
·Poles:8-40(Right Angle,Double Row)
·Material:PIN:Brass,Tin Plated
Brass:(8-28PIN)PBT+15%G.F UL94V-0
(30-40PIN)PBT+30%G.F UL94V-0
·Mating Housing:AW2014H-2xNP
·Mating Terminal：AW2014TX
·Parking：Tube Packing
