2.0mm Female Header Dual Row horizontal SMT

Wire-to-board solutions for micro-miniature power, signal, I/O and sealed applications.

Ideal for compact applications in automotive, industrial, medical and mobile device industries

High quality, competitive price, fast delivery, quick reply. CE, Rohs, Reach passed.

Using the example of the electrical outlet, note the openings in the outlet await insertion of an electrical plug.Computers also have several female connectors that allow insertion of cables for keyboards, monitors and other computerized devices. Female

A female Header is a type of connector. It is a kind of universal connection device that widely used in electronics, electrical appliances, meters instrumentation, etc.

A female connector is a type of connector that consists of a jack into which a male connector can be inserted. It is usually present at the end of a cable or other hardware such that a secure physical and electrical connection between two or more devices is made possible. A male connector can be converted into a female connector and vice versa by a tool called a gender changer.

2.product parameter

Current Rating:                       2Amp

Insulation Resistance:            1000MΩ min

Contact Resistance:               20MΩ max

Dielectric Withstanding:          500V AC for one minute

Operating Temperature:          -40°C  to +105°C

Contact Material:                    Copper Alloy

 Insulator Material:                   PA6T UL 94V-0

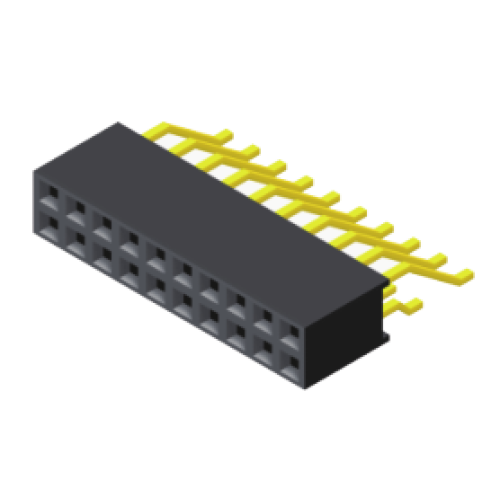

3.product picture
