2.0 mm Female Header Angle SMT Type H4.3

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO 9001-2015
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

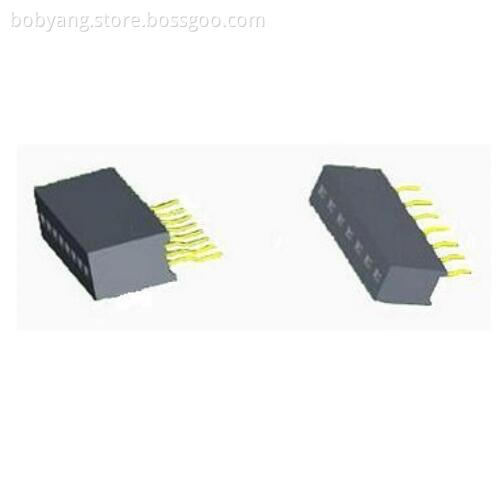

2.0 mm Female Header Single Row Angle SMT Type H4.3

Ideal for compact applications in automotive, industrial, medical and mobile device industries, 2.0mm female header SMD type connectors offer a wide selection of low-profile, narrow width options in various mated heights and circuit sizes.

2.00mm pitch female header, angle SMT, through hole, single row, 3.3mm tail length, gold flash plating, 1-40 circuits, led-free.

Specification:

current rating	1.5Amp
insulation resistance	1000M ohms min
contact resistance	20M ohms max
dielectric withstanding	AC 500V
operating temperature	-65℃~+125℃
contact material	brass
insulator material	PA6T, UL94V-0, black

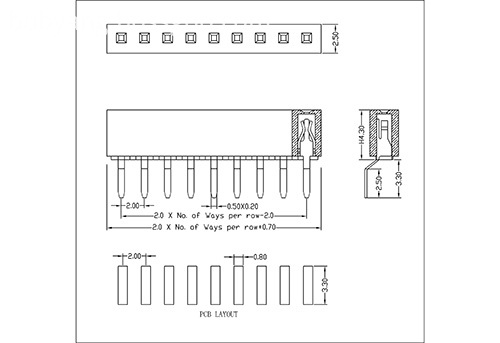

2.0 mm Female Header Single Row Angle SMT Type H4.3 FHDM01-XXSXXX

Send your message to this supplier

* From:
* To:

Mr. Bob Yang
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Female Header Angle SMT , Female Header SMD , Female Header Step
