2.0 mm Female Header Single Row 180 degree
  • 2.0 mm Female Header Single Row 180 degree
2.0 mm Female Header Single Row 180 degree

2.0 mm Female Header Single Row 180 degree

  • $500.00
    ≥1000 Piece/Pieces
Min. Order:
1000 Piece/Pieces
Min. Order:
1000 Piece/Pieces
Transportation:
Ocean, Air, Express
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 10000K/month
Supply Ability: 10000K/month
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CIF,EXW
Certificate: ISO 9001-2015
HS Code: 8536909000
Transportation: Ocean,Air,Express
Port: Shenzhen
Product Description
Product Description

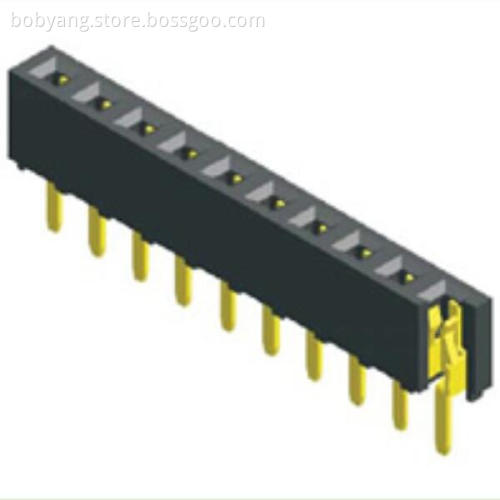

2.0 mm Female Header Single Row Straight Type H4.3mm



2.00mm female header strips are commonly used as low cost connectors for customized cables or perforated prototyping PCBs.

The standard spacing is the same as on most solder-less breadboards and matches 2.00mm pin header strips.

Alternatives available with variations in these parameters: pins select variant.

We also carry right angle versions of some of these single row female headers.


Specification:

current rating
 1.5Amp
insulation resistance
 1000M ohms min
contact resistance
 20M ohms max
dielectric withstanding
 AC 500V
operating temperature
 -65℃~+125℃
contact material
 brass
insulator material
 PA6T, UL94V-0, black

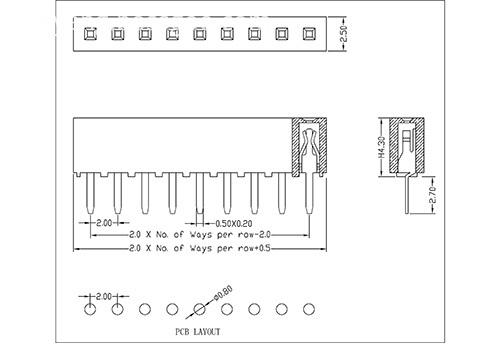

2.0 mm Female Header Single Row Straight Type H4.3 FHDS02-XXSXXX
