1.27mm Pitch Female Header Dual Row Connector
  • 1.27mm Pitch Female Header Dual Row Connector
1.27mm Pitch Female Header Dual Row Connector

1.27mm Pitch Female Header Dual Row Connector

Payment Type:
T/T, Paypal
Incoterm:
FOB, CIF, EXW
Min. Order:
1000 Bag/Bags
Min. Order:
1000 Bag/Bags
Delivery Time:
14 Days
Transportation:
Ocean, Air
Port:
SHENZHEN, HONGKONG
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 10000K/month
Supply Ability: 10000K/month
Payment Type: T/T,Paypal
Incoterm: FOB,CIF,EXW
Certificate: ISO9001
HS Code: 8536909000
Transportation: Ocean,Air
Port: SHENZHEN,HONGKONG
Product Description
Product Description

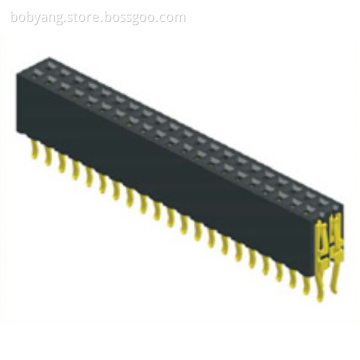

Shenzhen Antenk promoted a 1.27mm pitch Female Header Dual Row Straight Type connector.
Female Header connector:
1, Female Header connector according to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54 spacing.
2, 1, Female Header connector according to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54 spacing. According to the height of the plastic and whether it is divided by bumps, the bumps are semi-convex and fully convex.
3, according to the number of rows of pin headers: single row, double row, 3 rows, 4 rows, etc., the current maximum is only 4 rows.
4. According to whether it needs to be increased, whether it needs to be divided by positioning column, there are two kinds of positioning columns, one is the inner positioning column and the other is the ear positioning column.
The application of the motherboard: This connector is widely used in PCB circuit boards in electronics, electrical appliances, and meters.

The role of the mother-in-law: Its function is to function as a bridge between the blocked or isolated circuits in the circuit, and to undertake the task of current or signal transmission. Usually used with the motherboard to form a board-to-board connection; or used in conjunction with the electronic harness end to form a board-to-wire connection; it can also be used independently for board-to-board connection

1.No.of Contacts: 02To 100.

2.Connector Type: Dual Row.

3.Plastic High:4.30mm.(Other sizes can be selected).

4.Insulator Material : PA6T / LCP / PA9T.

5.Packing:Tray / Bag / Tube / Tube+CAP / Tape&Reel / Tape&Reel+CAP.

   SPECIFICATION
Current Rating:                       1Amp
Insulation Resistance:            1000M ohms min
Contact Resistance:               20M ohms max
Dielectric Withstanding:          AC500V
Operating Temperature:          -65°C  to  +125°C
Contact Material:                    Brass
Insulator Material:                   PA6T UL 94V-0 Black

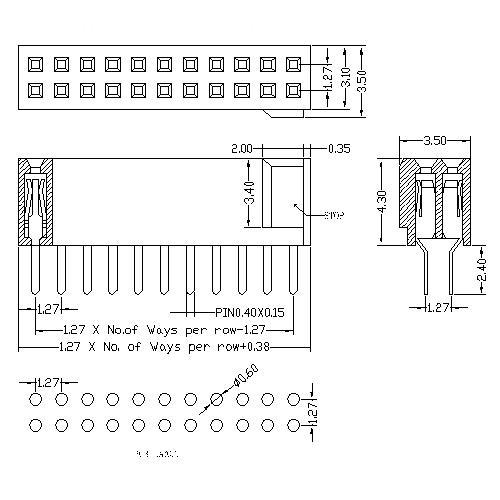

1.27 mm Female Header Dual Row Straight Type With Bump
