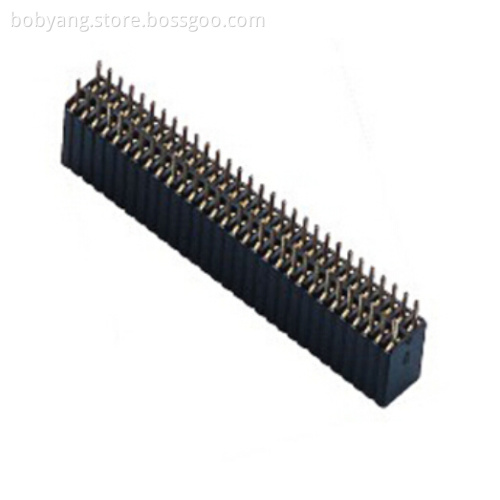

1.27mm Pitch Female Header Dual Row Straight Type
- Payment Type:
- T/T, Paypal
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1000 Bag/Bags
- Min. Order:
- 1000 Bag/Bags
- Delivery Time:
- 14 Days
- Transportation:
- Ocean, Air
- Port:
- SHENZHEN, HONGKONG
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 10000K/month |
Supply Ability: | 10000K/month |
Payment Type: | T/T,Paypal |
Incoterm: | FOB,CIF,EXW |
Certificate: | ISO9001 |
HS Code: | 8536909000 |
Transportation: | Ocean,Air |
Port: | SHENZHEN,HONGKONG |
Since the specifications used by different electronic products are not identical, there are also a variety of models for the mother. According to the standard classification of FKMCONN, the product can be divided into 2.54mm, 2.00mm, 1.27mm, 1.00mm, 0.8mm according to the spacing. Five types (other special spacing can also be customized according to needs); according to the number of rows, there are single row mother, double row mother, three row mother, etc.; according to the package usage, there are patch SMT, plug-in DIP (inline/bend) At the same time, in order to cooperate with the corresponding pin headers, different sizes of the mother-mother can be customized.
1.No.of Contacts: 02To 100.
2.Connector Type: Dual Row.
3.Plastic High:8.50mm.(Other sizes can be selected).
4.Insulator Material : PA6T / LCP / PA9T.
5.Packing:Tray / Bag / Tube / Tube+CAP / Tape&Reel / Tape&Reel+CAP.
SPECIFICATION
Current Rating: 1Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator Material: PA6T UL 94V-0 Black
