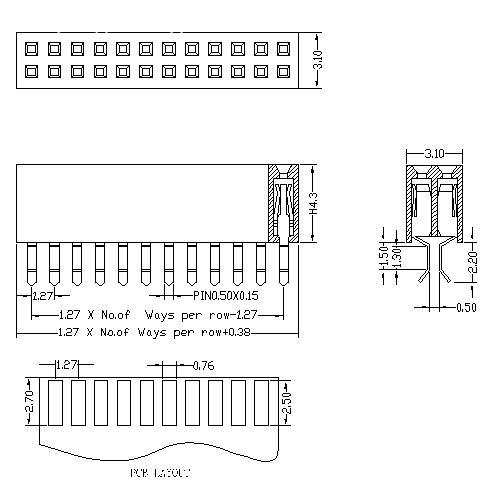

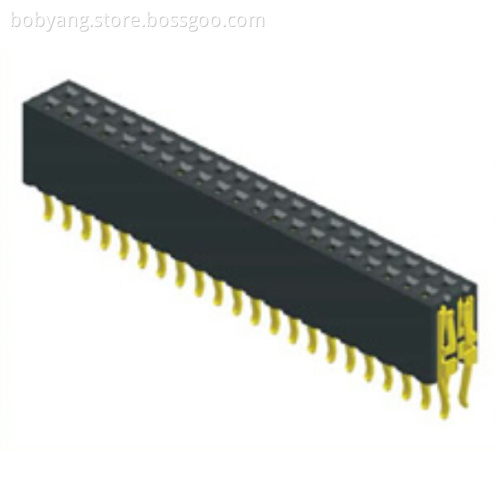

1.27mm Female Header Dual Row Straddle Type

1.27mm Female Header Dual Row Straddle Type connector

Distinction of the female connector:

1. The mother is divided according to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54 spacing.
2, the mother is divided according to the height of the plastic and whether there are bumps, the bumps are semi-convex and full convex.
3, according to the number of rows of pin headers: single row, double row, 3 rows, 4 rows, etc., the current maximum is only 4 rows.
4, according to the installation method: 180 degrees with S, 90 degrees with W, SMT with T.
5. According to whether it needs to be increased, whether it needs to be divided by positioning column, there are two kinds of positioning columns, one is the inner positioning column and the other is the ear positioning column.

Female terminal type: U terminal and Y terminal
U-shaped terminal, U-shaped terminal with 3 faces for general plastic height
Y-type terminal, contact with 2 faces, generally high and high Y-type terminal

1.No.of Contacts: 02 To 100.

2.Connector Type: Dual Row.

3.Plastic High:4.30mm(Other sizes can be selected).

4.Insulator Material : PA6T / LCP / PA9T.

5.Packing:Tray / Bag / Tube / Tube+CAP / Tape&Reel / Tape&Reel+CAP.
