1.00mm pitch 180°Single Row Wafer-SMT AW1002VB-S-xP

1.product introduction

A Wire To Board Connectors is an electrical connector that consists of two parts, a plug and a socket.The plug usually has a metal pin or contact point, and the socket has a corresponding jack or contact point, and the circuit is connected and disconnected by inserting and pulling.It is very important for users to correctly select Wire To Board Connectors products.In recent years, Wire To Board Connectors are moving towards smaller trends.The common wire To board connector pitch for handheld consumer electronic devices is 0.40mm;The stack height of 1.00mm is a small connector.Recently, the connectors used by major original equipment manufacturers are as low as 0.70 mm, and sometimes even lower.

2.product parameter

SPECIFICATIONS
·Voltage rating：50V AC.DC
·Current rating：1A,AC,DC
·Withstanding Voltage：500V AC/minute
·Insulation resistance:100MΩ min
·Temperature range：-40℃-+105℃
WAFER
·Part NO：AW1002VB-S-xP
·Material：Pin：Phosphor Bronze/Tin over Nickel
           Solder Tabs: Phosphor Bronze/Tin over Nickel
           Insulator：Nylon 9T，UL94V-0
·Mates with：AH1002B-xP series Single Row Housing
·Color: Ivory

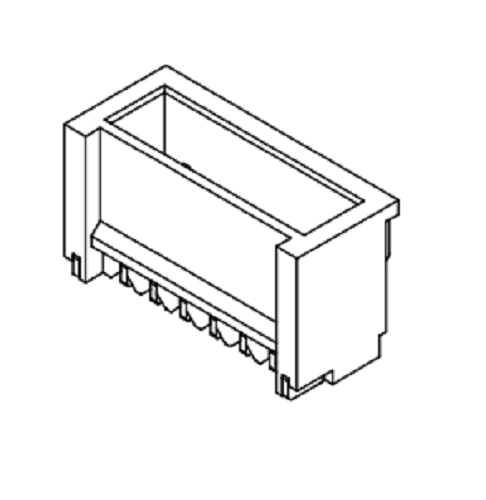

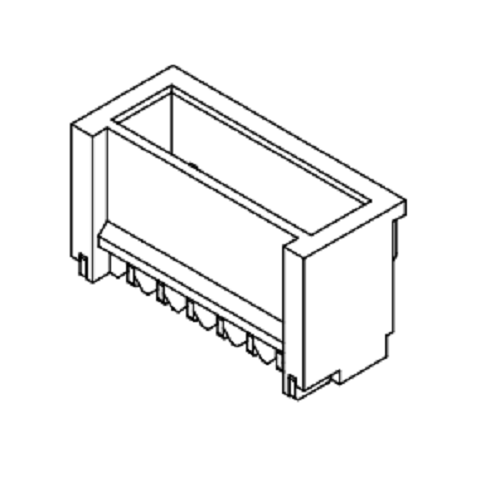

3.product picture
