1.00mm pitch 90°Single Row Wafer-SMT AW1002R-S-xP

1.product introduction

A Wire To Board Connectors is an electrical connector that consists of two parts, a plug and a socket.The plug usually has a metal pin or contact point, and the socket has a corresponding jack or contact point, and the circuit is connected and disconnected by inserting and pulling.This Wire To Board Connectors provides reliable electrical contact with high bandwidth and signal transmission rates.Wire To Board Connectors are widely used in various electronic equipment and communication systems, such as computers, mobile devices, network equipment, industrial control systems, etc.They are responsible for the transmission of high-speed data, audio and video signals, power supply and other functions, providing a reliable physical connection between devices.

2.product parameter

SPECIFICATIONS
·Voltage rating：50V AC.DC
·Current rating：1A,AC,DC
·Withstanding Voltage：500V AC/minute
·Insulation resistance:100MΩ min
·Temperature range：-40℃-+105℃
WAFER
·Part NO：AW1002R-S-xP
·Material：Pin：Phosphor Bronze/Tin over Nickel
           Solder Tabs: Phosphor Bronze/Tin over Nickel
           Insulator：Nylon 6T，UL94V-0
·Mates with：AH1002-xP series Single Row Housing
·Color: Ivory

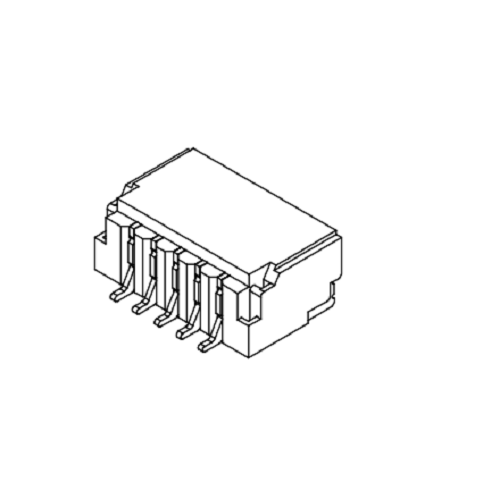

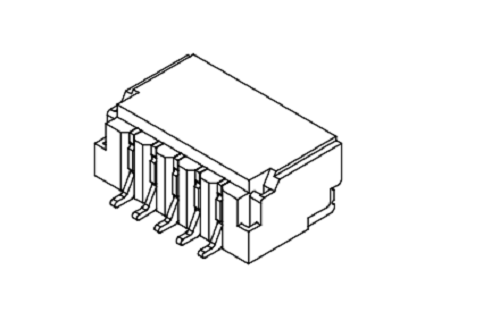

3.product picture
