1.00mm pitch 90°Single Row Wafer-SMT AW1002RA-S-xP

1.product introduction

The Wire To Board Connectors between the circuit board is different, and its type is different, and each type has its own characteristics.Some Wire To Board Connectors are used in compact products and are denser than row pins.Application scenario: Widely used, conventional intelligent hardware products are basically used.Advantages: small size, large number of needles, 1 centimeter length can do 40 needles (the same size can only do 20 needles).Disadvantages: The structural design needs to be fixed and is expensive and cannot be plugged and unplugged frequently.Wire To Board Connectors are widely used in various electronic equipment and communication systems, such as computers, mobile devices, network equipment, industrial control systems, etc.

2.product parameter


SPECIFICATIONS
·Voltage rating：50V AC.DC
·Current rating：1A,AC,DC
·Withstanding Voltage：500V AC/minute
·Insulation resistance:100MΩ min
·Temperature range：-40℃-+105℃
WAFER
·Part NO：AW1002RA-S-xP
·Material：Pin：Brass/Tin over Nickel
           Solder Tabs: Brass/Tin over Nickel
           Insulator：Nylon 6T，UL94V-0
·Mates with：AH1002A-xP series Single Row Housing
·Color: Ivory

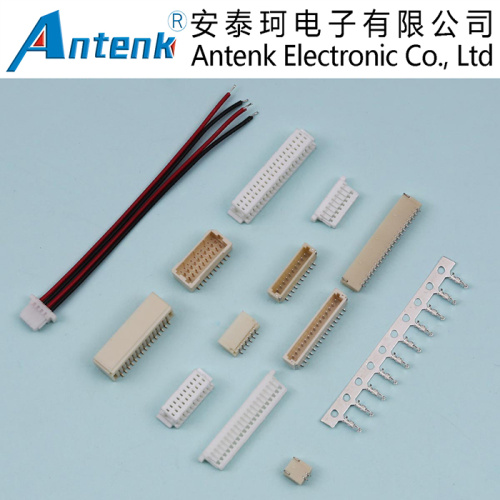

3.product picture
