1.00mm Pitch asymmetric double plastic pin 11P SMT

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

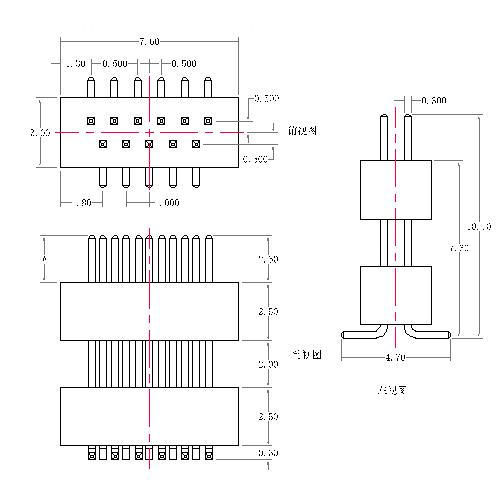

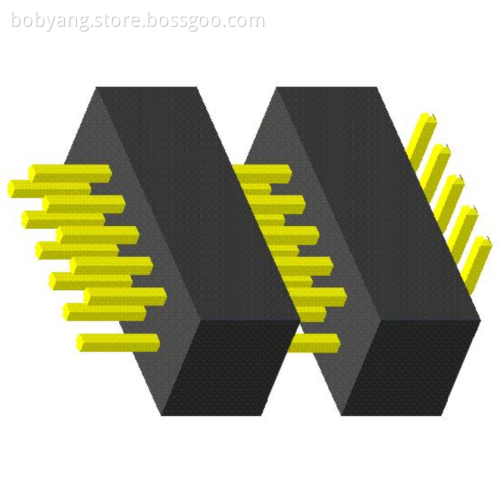

Shenzhen Antenk electronics co., ltd. introduces a 1.00mm Pitch, Male Head, 11 PIN asymmetric SMT connector with a plastic height of 2.50mm.Plastic Material: PA6T, PA9T, lcp.contact Material:Brass;The Pin Length: 116 = 11.6 mm,This is a connector that belongs to a special PIN bit,The products are widely used in displays, computer motherboards, stored program control exchangers, digital cameras,cards,routers, wireless telephones, talkback machines, mobile phones, digital family appliances and so on..

Specifications:
Current Rating: 0.75Amp
Insulation Resistance:1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator Material: PA6T,UL 94V-0 Black

1.00 mm Pitch asymmetric double plastic pin 11P,
