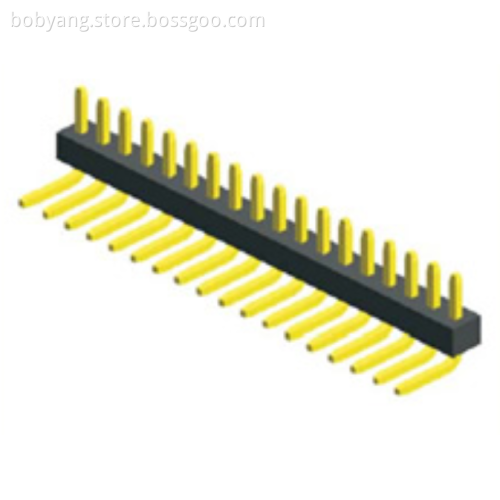

1.00 mm Pin Header Single Row Angle Type
  • 1.00 mm Pin Header Single Row Angle Type
1.00 mm Pin Header Single Row Angle Type

1.00 mm Pin Header Single Row Angle Type

  • $500.00
    ≥1000 Piece/Pieces
Min. Order:
1000 Piece/Pieces
Min. Order:
1000 Piece/Pieces
Transportation:
Ocean, Air, Express
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 2000K/month
Supply Ability: 2000K/month
Payment Type: T/T,Paypal
Incoterm: FOB,CIF,EXW
Certificate: ISO9001
HS Code: 8536909000
Transportation: Ocean,Air,Express
Port: Shenzhen,
Product Description
Product Description

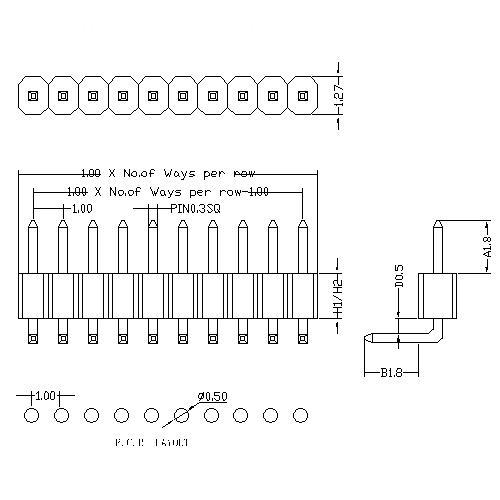

Shenzhen Antenk mainly produces connector products, and a 1.00 pitch single-row right Angle connector will be introduced below. Its PIN PIN is 0.30*0.30mm, which conforms to UL certification. Plastic plated: PA6T, PA9T, LCP, PIN available with tin plated, gold plated 1u,3u,5u,10u,15u and 30u.It is manufactured in a dust-free environment, and we provide after sales service support as well, and quality warranty period last half year


Specifications:
Current Rating: 0.75Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°C  to  +125°C
Contact Material: Brass
Insulator Material: PA6T,UL94V-0,Color:Black

1.00 mm Pin Header Single Row Angle Type
