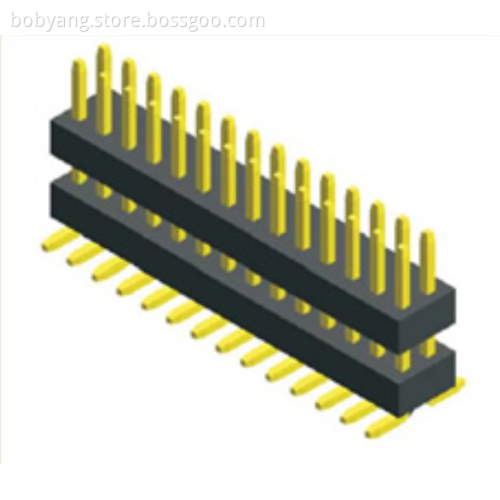

1.00mm Pitch Dual Row Dual Plastic SMT Type

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN

Product Description

Antenk electronics in shenzhen offers a 1.00mm Pitch dual row, SMT connector with guide and no guide,Operating Temperature: -65°C to +125°C, Insulator Material:PA6T, PA9T, LCP, PIN available with tin plated, gold plated 1 u", 3 u", 5 u",10u" 15 u", and 30 u"

Specifications:
Current Rating: 0.75Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator Material: PA6T,UL94V-0,Color:Black

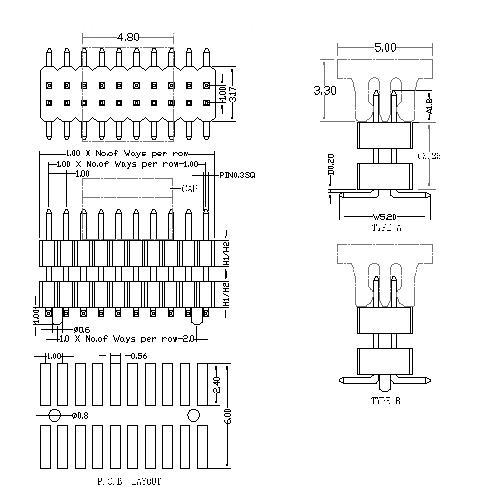

1.00 mm Pin Header Dual Row Dual Plastic SMT Type PHBM03-XXD
