ba 3791 military alkaline battery
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 10-25 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hong Kong, China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000 pcs per month |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hong Kong,China |
State-of-charge indicator (SOCI). Each battery shall indicate its current state of charge. The state of charge display location shall be as specified (see ). The display shall have five distinct segments showing the ranges of state of charge of the battery. The segments shall be black in color on a white or pale gray background. The display shall be on continuously with no user action required except that it may go blank temporarily as it refreshes the display.Dual section batteries require a separate display for each section. The value displayed shall
compensate for use temperature, and discharge rate of the battery. As the battery ages and experiences capacity fade from use, the display shall compensate by showing the fully charged state as a percentage of the original fresh capacity (commonly referred to as [state of health" or[true capacity"). The state of charge ranges displayed shall be as follows

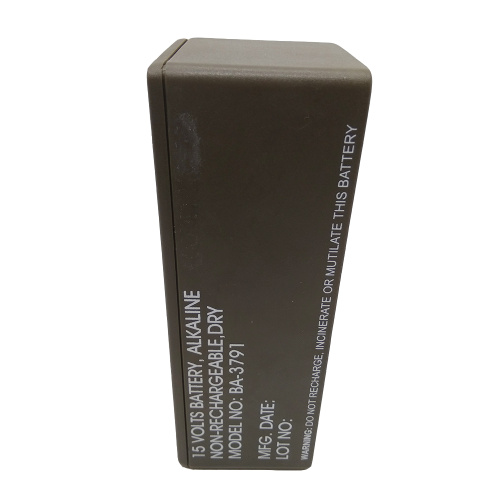

* Our BA-3791 military battery meets the Military Standards MIL-B-49030(EL).
* This is high performance non-rechargeable Alkaline battery
* Durable high impact plastic housing and connector enclosure
* High reliability due to all welded Construction
* Unit contains safety vented cells
* 100% final testing
* Replacement for: TNC-2188, and variants.
Low temperature battery pack:
Item Specification
Voltage: Typical: 15.0V, Maximum: 16.5V, Final: 10.0V
Nominal Capacity: 16.0Ah at 23℃, Minimum run time of 20 hours under
simulated load conditions
Weight: Max 1650 grams
Dimensions: 187*71*65mm
Self-discharge rate: Less than 1.0% per month
Operating Temp: -20℃ to +55℃
Storage Temp: -40℃ to +45℃
Exterior/Housing: Hard Plastic Case

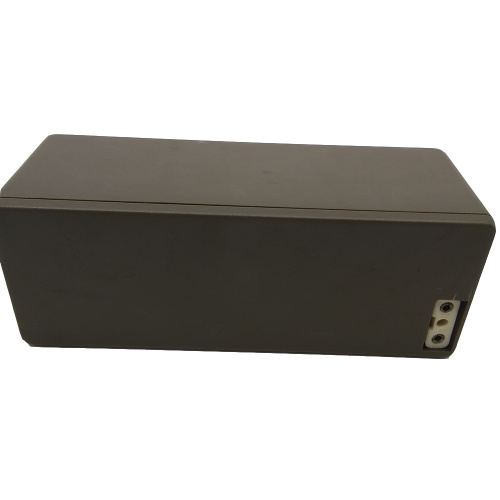

Connector: 2 pin polarized socked
APPLICATIONS:
--- PRC-80
--- PRC-730
--- PRC-2200
These batteries are also available in YFJ company as:
A. Non-rechargeable battery:
B. Rechargeable battery:
