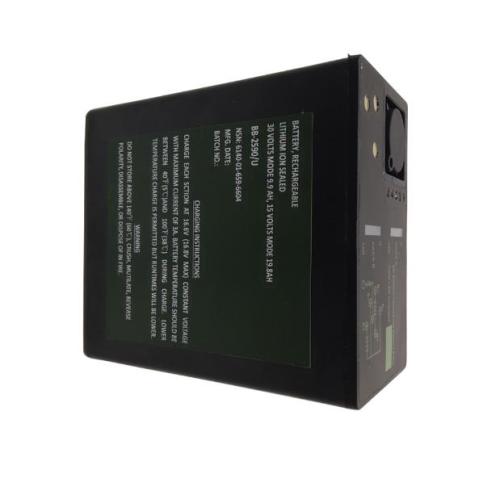

bb 2590u military battery pack

BB2590/U lithium ion military battery with SMBUS data communication was designed by YFJ company which follow the  Military Standards MIL-PRF-32383.over these years ,YFJ company has designed and develop a lot of military li-ion battery,polymer battery for different application,include low temperature cells ,low temperature military battery pack  which has got attention from many customers abroad,to these batteries for military use ,YFJ company has a series test to control the product quality and make it 100% qualified by customers

1.This is high performance rechargeable Lithium Ion battery with instantaneous start up.

2.Dual state of charge [gas gauge" LCD displays.

3.Durable high impact plastic housing and connector enclosure

4.High capacity, performance verified, hermetically sealed, lithium-ion cells.

5.Protection against short circuit and improper charge.

6.High reliability due to all welded Construction.

7.Unit contains safety vented cells

8.100% final testing

9.Replacement for: BB-390A/U, BB-590/U

NSN: 6140-01-554-2347

BB-390B/U battery ,  BB-490/U battery , BA-5590/U battery ,BA-5390/U battery , BA-5290/U battery , BA-3590/U battery , and variants.

Item                                         Specification
Average Voltage :                      Typical: 14.4V or 28.8V Final:10.0V or 20.0V
Nominal Capacity :                     14.4V Mode: 15.0Ah @ 1.0A to10V at 23 ℃
                                               28.8V Mode: 7.5Ah @ 1.0A to 20V at 23 ℃
Max Discharge :                          4.0 A continuous in 28.8V Mode
                                                8.0 A continuous in 14.4V Mode
Pulse Capability::
(5 seconds):                               Up to 18A continuous in 28.8V Mode
Weight   :                                  About 1500 grams
Dimensions (H-L-W) :                127*112*63mm
Operating Temp                       -20 ℃ to +60℃
Storage Temp :                         -20 ℃ to +60℃
Exterior/Housing :                      Hard Plastic Case
Terminals/Connector:                6 pin polarized socked

FEATURES:
--- Dual modes: 15V or 30V
--- High energy density
---  LCD Displays
--- Light weight
--- 5-year shelf life
--- SMBUS data communication
--- Safe: non-pressurized system
APPLICATIONS:
---  PRC-104, PRC-119
---  PRC-138, KY-57
---  Other equipment
