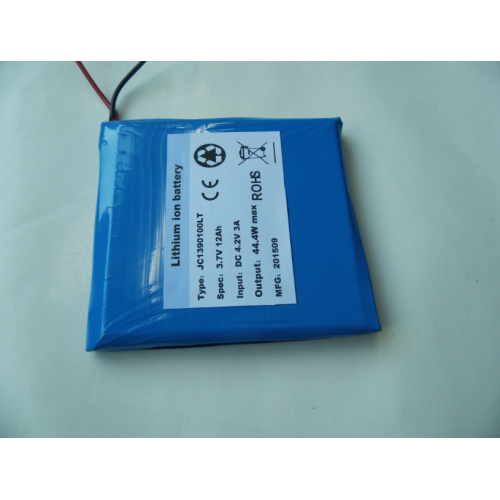

low temperature capacity 3.7V 12ah battery
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 10-15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong |
Low Temperature Lithium Battery is designed for special environment application ,it can effectively improve the discharge performance of the battery in the low temperature environment, reduce the internal resistance of the battery, and achieve the effect of high efficiency discharge.moreover ,YFJ 12Ah Lipo High Discharge Pack can achieve this fucntion with our design :
1, High energy density
2, High working voltage for single battery cells
3, Pollution-free Lipo Battery Cell
4, Long cycle life
5, No memory effect
low temperature capacity 3.7V 12ah battery
|
NO. |
Items |
Specifications |
|||
|
1 |
Charge voltage |
4.2V |
|||
|
2 |
Nominal voltage/ |
3.7V(1S2P) |
|||
|
3 |
Initial impedance |
120mΩ |
|||
|
4 |
Nominal capacity |
12Ah |
|||
|
5 |
Minimum capacity |
11.8Ah |
|||
|
6 |
Low-temperature capacity |
≥8.4Ah |
When the battery is standard charged, it shall be put into chamber at ( -40±2 )℃for 8-16hrs,then discharged at 0.2C5A (2.4A) constant current to2.5V |
||
|
7 |
Charge current |
Standard Charging::0.2C5A (2.4A) Rapid charge:0.5C5A C(6A) Max |
|||
|
8 |
Standard Charging method |
2.4A(0.2C5A) CC(constant current)charge to4.2V,then CV(constant voltage 4.2V)charge till charge current decline to ≤120mA(≈0.01C5A) |
|||
|
9 |
Charging time |
Standard Charging:6.5hours(Ref.) Rapid charge: 3.5hours(Ref.) |
|||
|
10 |
Max.discharge current |
6A(0.5C5A) |
|||
|
11 |
Discharge cut-off voltage |
2.5V |
|||
|
12 |
Shelf life |
2years |
|||
|
13 |
Cycle life (0.2C5A/0.2C5A) |
500 times,≧80%DOD |
|||
|
14 |
Operating temperature |
Charging: 0℃~45℃ Discharging:-40℃~+60℃ |
|||
|
15 |
Storage temperature |
Less than 1 month |
-10℃~+45℃ |
Percentage of recoverable capacity :70% |
|
|
Less than 6 month |
-40℃~+35℃ |
||||
|
16 |
Pack Weight |
Approx:132g |
|||
|
17 |
Pack Dimension |
Length: Max100.00 mm Width: Max90.00mm Thickness1:Max 13.00 mm |
|||
