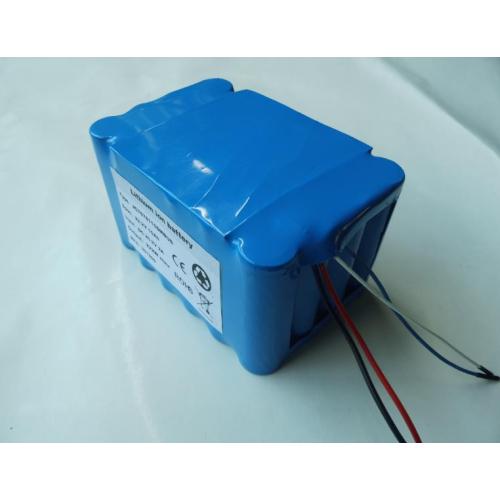

Factory customized 22.2V 10Ah li-ion battery pack
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 10-15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong |
Low temperature power lithium battery is used for infrared laser equipment, strong light type armed police equipment, acoustic armed police equipment,YFJ company has been focusing these high-end battery over these years ,and successfully apply our battery to some government military department from other countries. our Customized Li-ion Battery was equipped with these features:
Firstly ,it is the temperature range: these lower temperature lithium battery and lithium polymer can be operated in -50°C~+60°C for long t ,secondly it has good excellent storage life and reliability. With low self-discharge, selft-discharge rate≤5% monthly. 12v lipo battery
|
NO. |
Items |
Specifications |
||
|
1 |
Charge voltage |
25.2V |
||
|
2 |
Nominal voltage |
22.2V (6S4P) |
||
|
3 |
Initial impedance |
280mΩ |
||
|
4 |
Nominal capacity |
10Ah |
||
|
5 |
Minimum capacity |
9.8Ah |
||
|
6 |
Charge current |
Standard Charging::0.2C5A (2A) Rapid charge:0.5C5A C(5A) Max |
||
|
7 |
Standard Charging method |
2A(0.2C5A) CC(constant current)charge to25.2V,then CV(constant voltage 25.2V)charge till charge current decline to ≤100mA(≈0.01C5A) |
||
|
8 |
Charging time |
Standard Charging:6.5hours(Ref.) Rapid charge: 3.5hours(Ref.) |
||
|
9 |
Max.discharge current |
10A(1.0C5A) |
||
|
10 |
Discharge cut-off voltage |
15.0V |
||
|
11 |
Shelf life |
2 years |
||
|
12 |
Cycle life (0.2C5A/0.2C5A) |
500 times,≧80%DOD |
||
|
13 |
Operating temperature |
Charging: 0℃~45℃ Discharging:-20℃~+60℃ |
||
|
14 |
Storage temperature |
Less than 1 month |
-10℃~+45℃ |
Percentage of recoverable capacity :85% |
|
Less than 6 month |
-20℃~+35℃ |
|||
|
15 |
Pack Weight |
Approx:1250g |
||
|
16 |
Pack Dimension |
Length: Max115.00mm Width: Max78.00mm Thickness:Max76.00 mm |
||
