Li ion 14.8v lithium battery pack with smbus
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 10-15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong |
Smart Lithium Battery Pack with SMbus, When the SMBus have larger scope change, the bus voltage electrostatic protection circuit voltage stability and voltage stability in 6.2 V, does not affect the SMBus bus interface functions, in order to make sure the SMBus bus communication interface can work normally when voltage instability, and electrostatic gathered at the SMBus bus circuit does not cause the control integrated circuit IC damage and laptop is damaged, can improve the quality of the smart battery.
Our battery has passed MSDS ,UN38.3 which can make customer convenient to customs clearance when imported.besides ,these Lithium Battery Pack with Smbus will have one year warranty to make sure of our quality .

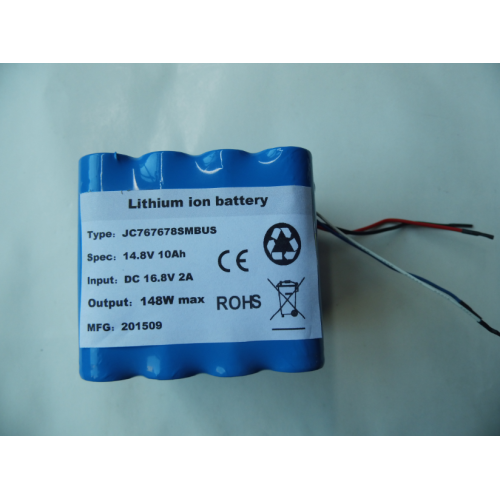

14.8V 10Ah Lithium Battery Pack with Smbus
|
NO. |
Items |
Specifications |
||
|
1 |
Charge voltage |
16.8V |
||
|
2 |
Nominal voltage |
14.8V |
||
|
3 |
Initial impedance |
220mΩ |
||
|
4 |
Nominal capacity |
10Ah |
||
|
5 |
Minimum capacity |
9.6Ah |
||
|
6 |
Communication methods |
SMBUS data communication |
||
|
7 |
Charge current |
Standard Charging::0.2C5A(2A) Rapid charge:1.0C5A C(10A) Max |
||
|
8 |
Standard Charging method |
2A(0.2C5A) CC(constant current)charge to 16.8V,then CV(constant voltage 16.8V)charge till charge current decline to ≤100mA(≈0.01C5A) |
||
|
9 |
Charging time |
Standard Charging:6.5hours(Ref.) Rapid charge: 2.5 hours(Ref.) |
||
|
10 |
Max.discharge current |
10A(1.0C5A) |
||
|
11 |
Discharge cut-off voltage |
10.0V |
||
|
12 |
Shelf life |
2 years |
||
|
13 |
Cycle life (0.2C5A/0.2C5A) |
300 times,≧80%DOD |
||
|
14 |
Operating temperature |
Charging: 0℃~45℃ Discharging:-20℃~+60℃ |
||
|
15 |
Storage temperature |
Less than 1 month |
-10℃~+45℃ |
Percentage of recoverable capacity :85% |
|
Less than 6 month |
-20℃~+35℃ |
|||
|
16 |
Pack Weight |
Approx:820g |
||
|
17 |
Pack Dimension |
Length: Max76.00 mm Width: Max76.00mm Thickness: Max 78.00 mm |
||
