14.8V high discharge rate lipo rechargeable batteries

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Lipo Rechargeable Batteries 4S1P has long shelf life with SMBUS data communication ,YFJ company will provide good service as :

Fast delievery! 5000pcs need only 7 days,and usually 3-5day!
Great shipping service! We have cooperated with DHL,UPS and EMS for long time,so we could promise
save much more money on the shipping cost and betterservice is offered!
3P lipo cell 3.7v 6000mah lithium polymer battery pack for tablet pc for RC helicopter have been certified by CE/ ROSH /KC /FCC /MDSS/ UN 38.3/ UL/ ISO 9001 to provide test reports.

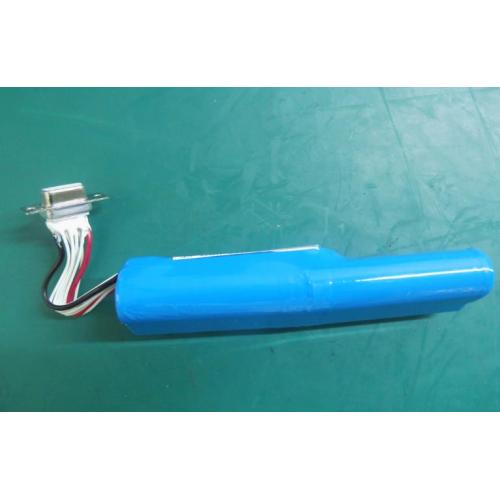

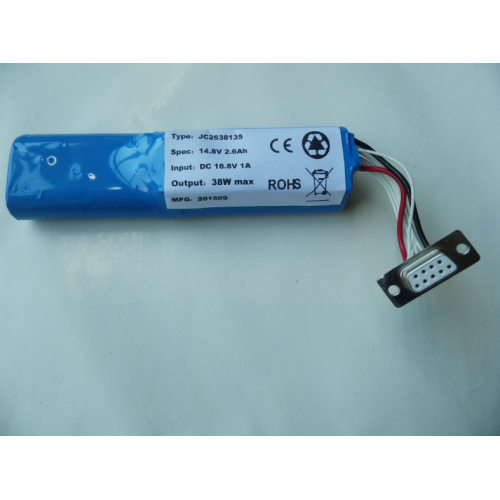

14.8V 2.6Ah rechargeable li ion battery pack with SMBUS data communication

NO.	Items		Specifications
1	Charge voltage		16.8V
2	Nominal voltage		14.8V (4S1P)
3	Initial impedance		220mΩ
4	Nominal capacity		2.6Ah
5	Minimum capacity		2.5Ah
6	Communication methods		SMBUS data communication
7	Charge current		Standard Charging::0.2C₅A (0.52A) Rapid charge:1.0C₅A C(2.6A) Max
8	Standard Charging method		0.52A(0.2C₅A) CC(constant current)charge to16.8V,then CV(constant voltage 16.8V)charge till charge current decline to ≤26mA(≈0.01C₅A)
9	Charging time		Standard Charging:6.5hours(Ref.) Rapid charge: 2.5hours(Ref.)
10	Max.discharge current		2.6A(1.0C₅A)
11	Discharge cut-off voltage		11.0V
12	Shelf life		2 years
13	Cycle life (0.2C₅A/0.2C₅A)		300 times,≧80%DOD
14	Operating temperature		Charging: 0℃~45℃ Discharging:-20℃~+60℃
15	Storage temperature	Less than 1 month	-10℃~+45℃	Percentage of recoverable capacity :85%
		Less than 6 month	-20℃~+35℃
16	Pack Weight		Approx:210g
17	Pack Dimension		Length: Max132.00 mm Width: Max38.00 mm Thickness: Max 20.00 mm
