11.1V lithium ion battery smart battery
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 10-15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong |
18650 Rechargeable Battery has much Safer features as there is no pressure on the high current and overcharged discharge that lithium ion batteries abhor, and there is no fire and explosion at all.
Major advantages :
1.High quality 12.1V 5.2Ah li-ion battery pack;
2.no memory effect and rechargeable battery pack ;
3.light weight;
4.With PCB for all protection;
5.Easy customized, energy density
6.Low self-discharge

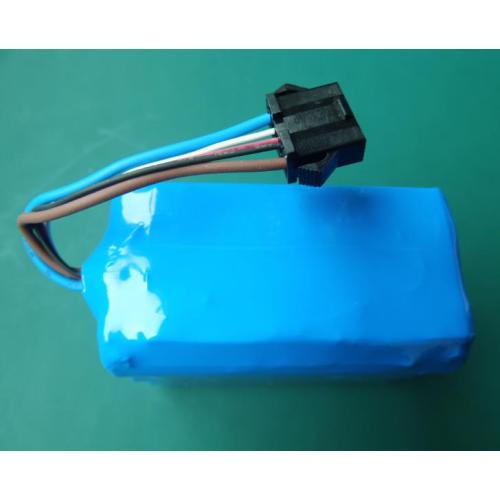

11.1V 5.2Ah rechargeable li ion battery pack with SMBUS data communication
|
NO. |
Items |
Specifications |
||
|
1 |
Charge voltage |
12.6V |
||
|
2 |
Nominal voltage |
11.1V (3S2P) |
||
|
3 |
Initial impedance |
170mΩ |
||
|
4 |
Nominal capacity |
5.2Ah |
||
|
5 |
Minimum capacity |
5.0Ah |
||
|
6 |
Communication methods |
SMBUS data communication |
||
|
7 |
Charge current |
Standard Charging::0.2C5A (1.04A) Rapid charge:1.0C5A C(5.2A) Max |
||
|
8 |
Standard Charging method |
1.04A(0.2C5A) CC(constant current)charge to 12.6V,then CV(constant voltage12.6V)charge till charge current decline to ≤52mA(≈0.01C5A) |
||
|
9 |
Charging time |
Standard Charging:6.5hours(Ref.) Rapid charge: 2.5 hours(Ref.) |
||
|
10 |
Max.discharge current |
5.2A(1.0C5A) |
||
|
11 |
Discharge cut-off voltage |
8.25V |
||
|
12 |
Shelf life |
2 years |
||
|
13 |
Cycle life (0.2C5A/0.2C5A) |
400 times,≧80%DOD |
||
|
14 |
Operating temperature |
Charging: 0℃~45℃ Discharging:-20℃~+60℃ |
||
|
15 |
Storage temperature |
Less than 1 month |
-10℃~+45℃ |
Percentage of recoverable capacity :85% |
|
Less than 6 month |
-20℃~+35℃ |
|||
|
16 |
Pack Weight |
Approx:300g |
||
|
17 |
Pack Dimension |
Length: Max67.00mm Width: Max60.00 mm Thickness1:Max 38.00mm |
||
