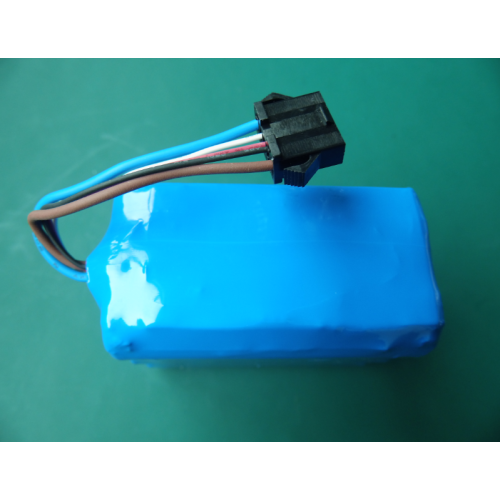

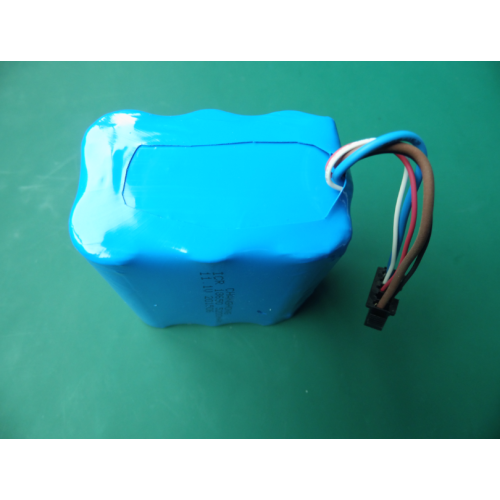

11.1V deep cycle military radio battery with smbus
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 10-15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong |
Military lipo battery pack or 18650 Deep Cycle Battery Pack were designed in 11.1V 3S2P ,11.1V Battery with Smbus can show the electric quantity and other message about these lithium battery pack whichi make it much safer. and it also has these merits:
- Avaliable terminals: soldering tabs, wires, connectors;
- Custom by in series&in battery pack parallel different shape;
- Excellent high discharge rate
- Extra-low internal impedance
11.1V 5.2Ah rechargeable li ion battery pack with SMBUS data communication
|
NO. |
Items |
Specifications |
||
|
1 |
Charge voltage |
12.6V |
||
|
2 |
Nominal voltage |
11.1V (3S2P) |
||
|
3 |
Initial impedance |
170mΩ |
||
|
4 |
Nominal capacity |
5.2Ah |
||
|
5 |
Minimum capacity |
5.0Ah |
||
|
6 |
Communication methods |
SMBUS data communication |
||
|
7 |
Charge current |
Standard Charging::0.2C5A (1.04A) Rapid charge:1.0C5A C(5.2A) Max |
||
|
8 |
Standard Charging method |
1.04A(0.2C5A) CC(constant current)charge to 12.6V,then CV(constant voltage12.6V)charge till charge current decline to ≤52mA(≈0.01C5A) |
||
|
9 |
Charging time |
Standard Charging:6.5hours(Ref.) Rapid charge: 2.5 hours(Ref.) |
||
|
10 |
Max.discharge current |
5.2A(1.0C5A) |
||
|
11 |
Discharge cut-off voltage |
8.25V |
||
|
12 |
Shelf life |
2 years |
||
|
13 |
Cycle life (0.2C5A/0.2C5A) |
400 times,≧80%DOD |
||
|
14 |
Operating temperature |
Charging: 0℃~45℃ Discharging:-20℃~+60℃ |
||
|
15 |
Storage temperature |
Less than 1 month |
-10℃~+45℃ |
Percentage of recoverable capacity :85% |
|
Less than 6 month |
-20℃~+35℃ |
|||
|
16 |
Pack Weight |
Approx:300g |
||
|
17 |
Pack Dimension |
Length: Max67.00mm Width: Max60.00 mm Thickness1:Max 38.00mm |
||
