Lithium-ion battery is a kind of rechargeable battery that relies on the movement of lithium ions between the positive and negative poles. In the process of charging and discharging, Li+ is inserted in and out between the two electrodes. When charging, Li+ is removed from the positive electrode and embedded into the negative electrode through the electrolyte. When you discharge, you do the opposite.
rechargeable lithium-ion batteries are the most widely used batteries in modern digital products such as mobile phones and laptops.
14.8V 5Ah rechargeable battery pack has 2 key advantages as :
1.we programmed the IC chip which will protect the battery pack from overcharge and overdischarge problems .
2.it has LCD Electricity quantity show which make battery status more clear

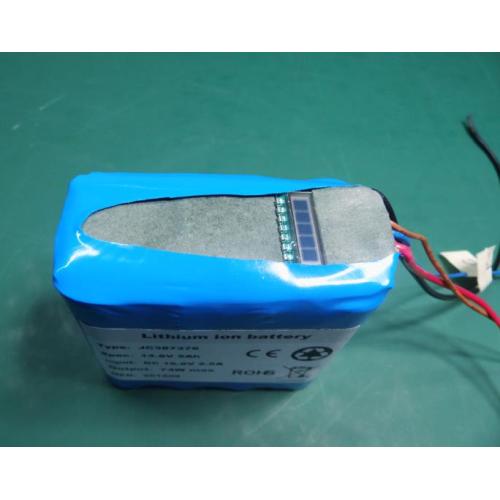

14.8V 5Ah li ion battery pack.
|
NO. |
Items |
Specifications |
||
|
1 |
Charge voltage |
16.8V |
||
|
2 |
Nominal voltage/ |
14.8V (4S2P) |
||
|
3 |
Initial impedance |
240mΩ |
||
|
4 |
Nominal capacity |
5Ah |
||
|
5 |
Minimum capacity |
5Ah |
||
|
6 |
Communication methods |
SMBUS data communication |
||
|
7 |
Electricity quantity show |
LCD Electricity quantity show |
||
|
8 |
Charge current |
Standard Charging::0.2C5A (1A) Rapid charge:1.0C5A C(5A) Max |
||
|
9 |
Standard Charging method |
1A(0.2C5A) CC(constant current)charge to 16.8V,then CV(constant voltage 16.8V)charge till charge current decline to ≤50mA(≈0.01C5A) |
||
|
10 |
Charging time |
Standard Charging:6.5hours(Ref.) Rapid charge: 2.5hours(Ref.) |
||
|
11 |
Max.discharge current |
5A(1.0C5A) |
||
|
12 |
Discharge cut-off voltage |
11.0V |
||
|
13 |
Shelf life |
2 years |
||
|
14 |
Cycle life (0.2C5A/0.2C5A) |
400 times,≧80%DOD |
||
|
15 |
Operating temperature |
Charging: 0℃~45℃ Discharging:-20℃~+60℃ |
||
|
16 |
Storage temperature |
Less than 1 month |
-10℃~+45℃ |
Percentage of recoverable capacity :85% |
|
Less than 6 month |
-20℃~+35℃ |
|||
|
17 |
Pack Weight |
Approx:410g |
||
|
18 |
Pack Dimension |
Length: Max76.00 mm Width: Max73.00 mm Thickness1:Max38.00 mm |
||
