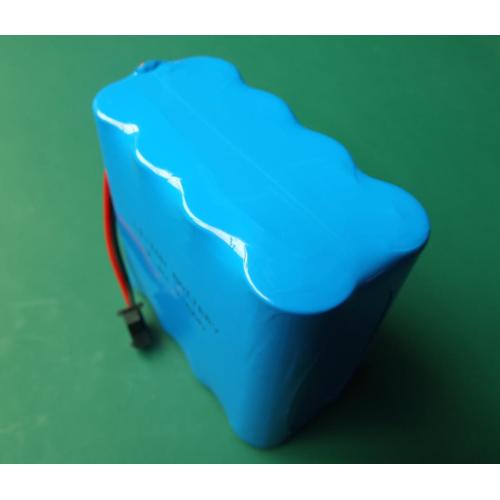

7.4v 8.8ah lithium battery power pack
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 15-25 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong, China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000 per month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong,China |
The most important tips for lithium battery charging and discharging in use are:
1. Charge according to standard time and procedure, even if the new lithium battery, the first three times should also be done;
2. When the machine power is too low, it should start charging as soon as possible (don't wait for automatic shutdown);
3. There is no special way to activate a lithium battery. It will be activated naturally during normal use of the machine. If you insist on using the popular "first three 12-hour charges" activation method, it won't actually work.
The above models are available in YFJ company
Model:3.7V 9Ah ,...
Model:7.4V-2.2Ah,4.4Ah,6.6Ah,8.8Ah......
Model: 12V - 4Ah, 5Ah, 6Ah, 8Ah, 9Ah, 11Ah, 12Ah, 13Ah, 14Ah, 15A h, 16Ah, 17Ah, 18Ah, 19Ah, 20Ah
Models: 24V -- 4.4Ah, 5Ah, 6.6Ah, 8.8Ah, 9Ah, 11Ah, 13.2Ah, 15.4Ah, 17.6Ah, 19.8Ah, 22Ah, 25Ah, 33Ah
Models: 36V -- 4.4Ah, 5Ah, 6.6Ah, 8.8Ah, 9Ah, 11Ah, 13.2Ah, 15.4Ah, 17.6Ah, 19.8Ah, 22Ah, 25Ah, 33Ah
Model: 48V -- 4.4Ah, 5Ah, 6.6Ah, 8.8Ah, 9Ah, 11Ah
We can also provide OEM/ODM service for customers
|
NO. |
Items |
Specifications |
||
|
1 |
Charge voltage |
8.4V |
||
|
2 |
Nominal voltage |
7.4V (2S4P) |
||
|
3 |
Initial impedance |
90mΩ |
||
|
4 |
Nominal capacity |
8.8Ah |
||
|
5 |
Minimum capacity |
8.6Ah |
||
|
6 |
Charge current |
Standard Charging::0.2C5A (1.76A) Rapid charge:0.5C5A C(4.4A) Max |
||
|
7 |
Standard Charging method |
1.76A(0.2C5A) CC(constant current)charge to 8.4V,then CV(constant voltage8.4V)charge till charge current decline to ≤88mA(≈0.01C5A) |
||
|
8 |
Charging time |
Standard Charging:6.5hours(Ref.) Rapid charge: 3.5 hours(Ref.) |
||
|
9 |
Max.discharge current |
4.4A(0.5C5A) |
||
|
10 |
Discharge cut-off voltage |
5.5V |
||
|
11 |
Shelf life |
2 years |
||
|
12 |
Cycle life (0.2C5A/0.2C5A) |
500 times,≧80%DOD |
||
|
13 |
Operating temperature |
Charging: 0℃~45℃ Discharging:-20℃~+60℃ |
||
|
14 |
Storage temperature |
Less than 1 month |
-10℃~+45℃ |
Percentage of recoverable capacity :85% |
|
Less than 6 month |
+18℃~+22℃ |
|||
|
15 |
Pack Weight |
Approx:395g |
||
|
16 |
Pack Dimension |
Length: Max76.00 mm Width: Max68.00 mm Thickness1:Max 38.00 mm |
||
