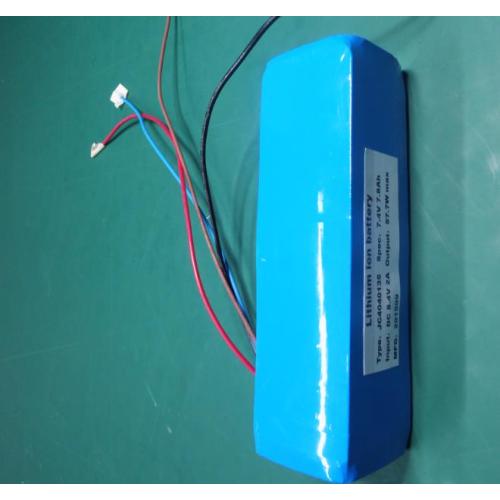

7.4V 7.8Ah rechargeable high power battery pack
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 10-15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong |
This 7.4V high power battery pack was design by YFJ company which has max discharge current at 7.8Ah. our company has focused more on quality for High Power Battery Pack as :
1.Lithium batteries are light in weight, small in size, large in capacitance, high in energy and high in safety
2.12V Lithium Ion Battery core raw materials. The core itself has overcharge, overpressure, and overlet the flow of four safety protection. It fundamentally solves the hidden dangers of short circuit, leakage, explosion and other aspects of Lithium Cell Battery.
|
NO. |
Items |
Specifications |
||
|
1 |
Charge voltage |
8.4V |
||
|
2 |
Nominal voltage |
7.4V (2S3P) |
||
|
3 |
Initial impedance |
160mΩ |
||
|
4 |
Nominal capacity |
7.8Ah |
||
|
5 |
Minimum capacity |
7.5Ah |
||
|
6 |
stabilizedvolt output |
12V-13V |
||
|
7 |
Charge current |
Standard Charging::0.2C5A(1.56A) Rapid charge:1.0C5A C(7.8A) Max |
||
|
8 |
Standard Charging method |
1.56A(0.2C5A) CC(constant current)charge to 8.4V,then CV(constant voltage 8.4V)charge till charge current decline to ≤78mA(≈0.01C5A) |
||
|
9 |
Charging time |
Standard Charging:6.5hours(Ref.) Rapid charge: 2.5hours(Ref.) |
||
|
10 |
Max.discharge current |
7.8A(1.0C5A) |
||
|
11 |
Discharge cut-off voltage |
5.5V |
||
|
12 |
Shelf life |
2 years |
||
|
13 |
Cycle life (0.2C5A/0.2C5A) |
500 times,≧80%DOD |
||
|
14 |
Operating temperature |
Charging: 0℃~45℃ Discharging:-20℃~+60℃ |
||
|
15 |
Storage temperature |
Less than 1 month |
-10℃~+45℃ |
Percentage of recoverable capacity :85% |
|
Less than 6 month |
-20℃~+35℃ |
|||
|
16 |
Pack Weight |
Approx:330g |
||
|
17 |
Pack Dimension |
Length: Max135.00 mm Width: Max40.00mm Thickness: Max40.00 mm |
||
