Basic Info

Place of Origin:	China
Productivity:	5000 Cubic Meters/Year
Supply Ability:	5000 Cubic Meters/Year
Payment Type:	L/C, T/T, D/P, Western Union

Product Description

Model NO.: 50mm

Size: 3/8", 1/2", 5/8", 3/4", 1", 1-1/2", 2"

Certificate: ISO9001:2000

Trademark: JINCHENG

Transport Package: by Carton Box, Palletized with Wrapped.

Specification: 3/8", 1/2", 5/8", 3/4", 1", 1-1/2", 2"

Origin: China

HS Code: 6909110000

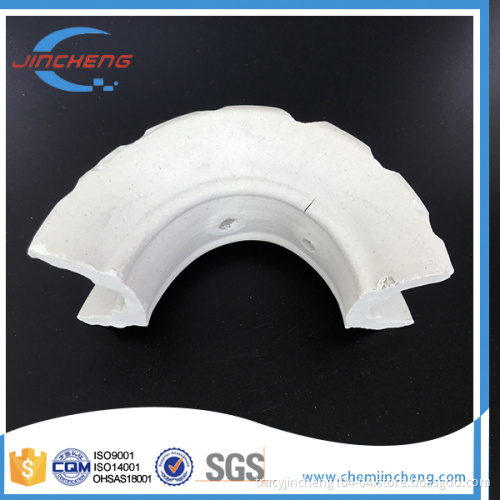

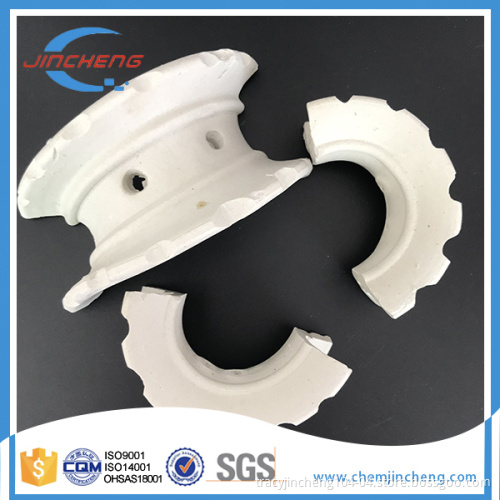

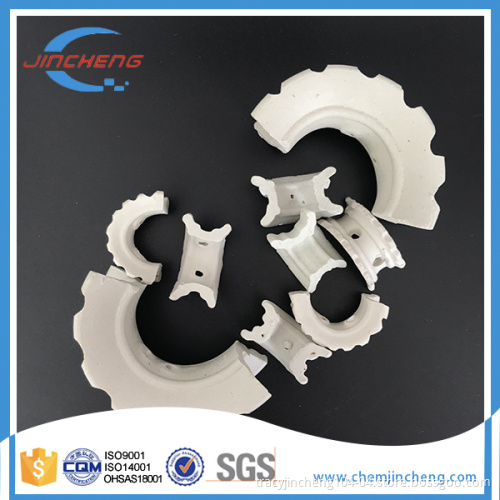

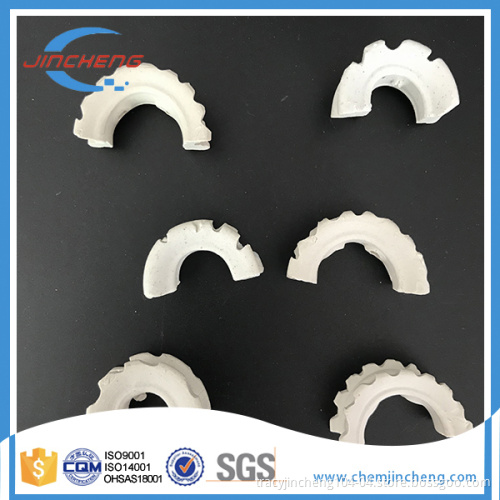

Ceramic Super Saddles are used in two main fields but have different properties depending on their application. The first field is the chemical and petrochemical industries and the second is in environmental areas such as RTO equipment. The first saddle is for chemical and petrochemical.
Advantage

These saddles are made from chemical porcelain and have excellent resistance to acids except in the case of hydrofluoric acid.

Moisture absorption must less than half a percent.

The porcelain's specific gravity is 2.3-2.4g/cm3 and an average heat capacity (between 20Centigrade and 500Centigrade of 0.22 cal/g Centigrade.

Jincheng ceramic saddles softening point is 1400Centigrade min. And they show good thermal shock resistance during repeated cycling between 20Centigrade and 820Centigrade.

Index	Unit	Value
Porosity	Vol%	1
Specific heat	KJ/Kg	840-900
Crush strength	N/mm 2	390-420
Specific gravity	g/cm 3	2.3-2.45
Acid Resistance	%	99.98
Firing temperature	Centigrade	1280 to 1320
Softening point	Centigrade	>1400
Water absorption	%	<0.2
Thermal Expansion	10 -6 mm/mm Centigrade	4.7
Hardness	Mohr Scale	7-8
Comprehensive strength	Newtons	5600
Shock strength	Kgf.cm/cm 2	1.0-1.5
