IP67 Waterproof DALI dimmable LED driver

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF, FCA

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN Port, SHENZHEN YANTIAN PORT, SHENZHEN SHEKOU PORT

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10,000 PCS
Supply Ability:	10,000pcs/day
Payment Type:	L/C,T/T,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF,FCA
Certificate:	CE(TUV)
HS Code:	8504401400&8504409999
Transportation:	Ocean,Land,Air
Port:	SHENZHEN Port,SHENZHEN YANTIAN PORT,SHENZHEN SHEKOU PORT

Product Description

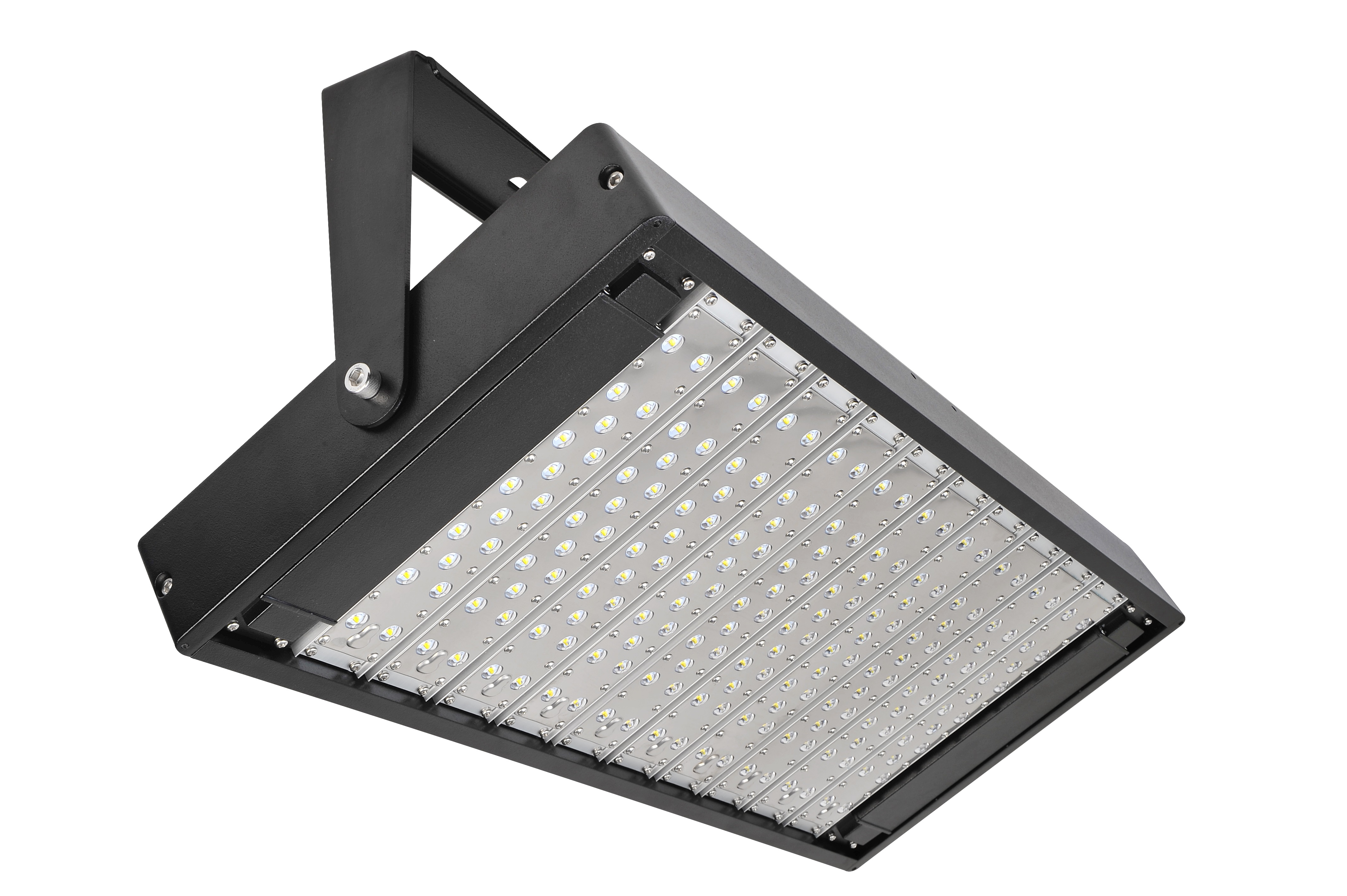

MOSO LCP-075D041 Series DALI dimmable LED driver is generally use for European LED lighting market, It provides a dim-to-off mode with low standby power. And this series Waterproof LED power supply supports a complete lighting environment to be controlled and managed efficiently. Customer can adjust the output current and set the step-timing dimming of each lamp separately even you finished the installation. DALI LED driver is reated for street lighting, flood lighting, high bay, high mast lighting, tunnel lights etc.

Product Features:

• Constant power, use MCU to control the delivered power;

• Flexible current setting by software or infrared controller;

• Suitable for luminaires in protection Class II;

• 3-in-1 dimming / Dali optional;

• 12V/0.5A auxiliary power is optional;

• Dim-to-off, standby power <0.5W;

• AC input: 90~305Vac;

• Typical efficiency up to 93%;

• Built-in active PFC;

• Overall protection: SCP, OVP, OTP;

• Surge immunity: line to line 5KV;

• IP67, suitable for dry / damp / wet locations;

• Working temperature: -40 ° C ~ 60 ° C;

• Safety standards: CCC, CE, CB;

• 5 years global warranty.

DALI LED power supply DALI LED Driver

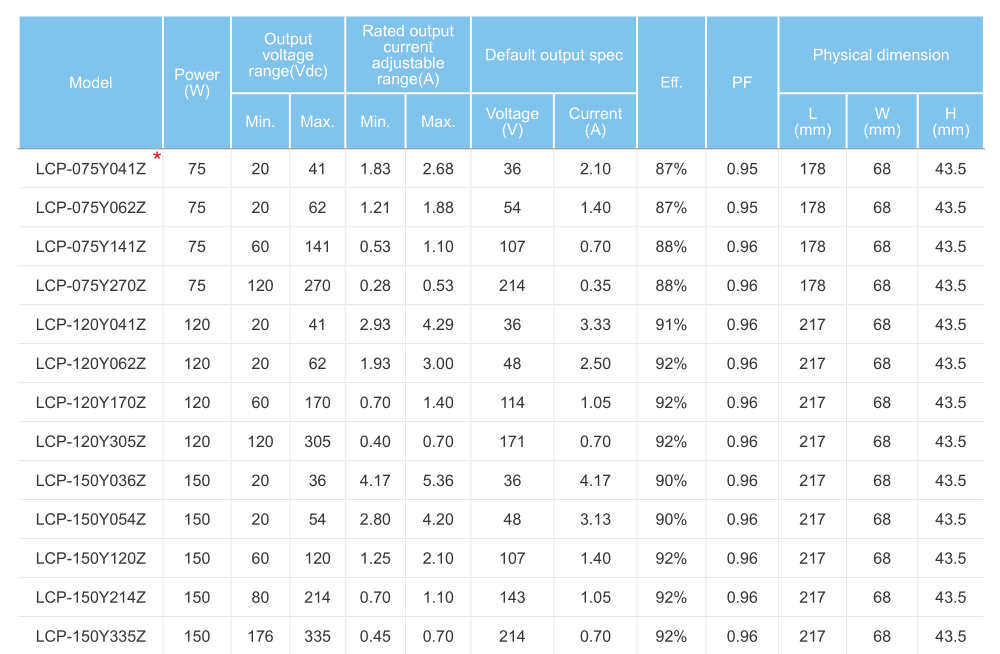

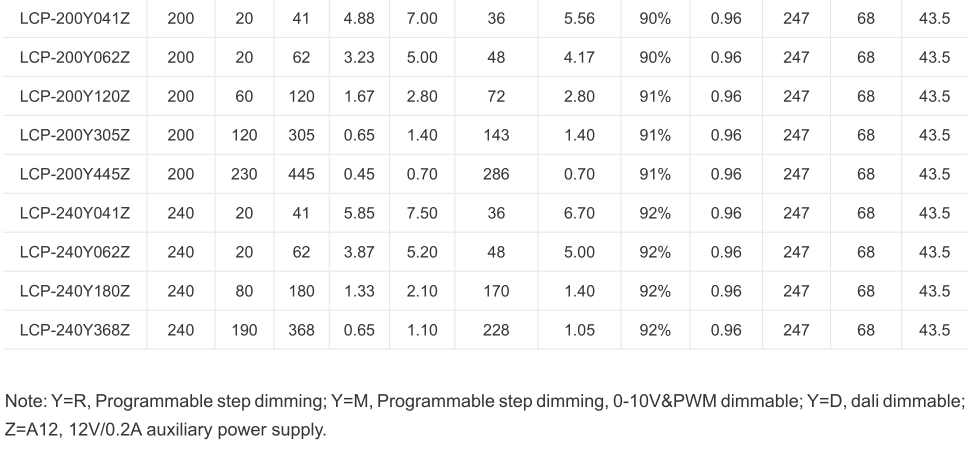

Product model :

MOSO DALI 1

MOSO DALI LED DRIVER

Programming Operation Guide

MOSO DALI LED driver

Set output current by Via Controller

Inserting receiving terminal of the remote controller into thebigger hole site of side plate of the power supply, shown as theleft piture.
First, press the key "ON" to unlock, then press the function key to adjust current what you need within 10S.

Operation instruction:
10%-100% : Different rate of maximum output current.
+, - : Current fine tuned-keys, every step is 1%.
ON : The key of opening the controller.
OFF : The key of setting the minimum current.
SET : Reserved key, no function by now.
Warning: Please do not continuously press"+" to avoid the over power protection and unstable output.

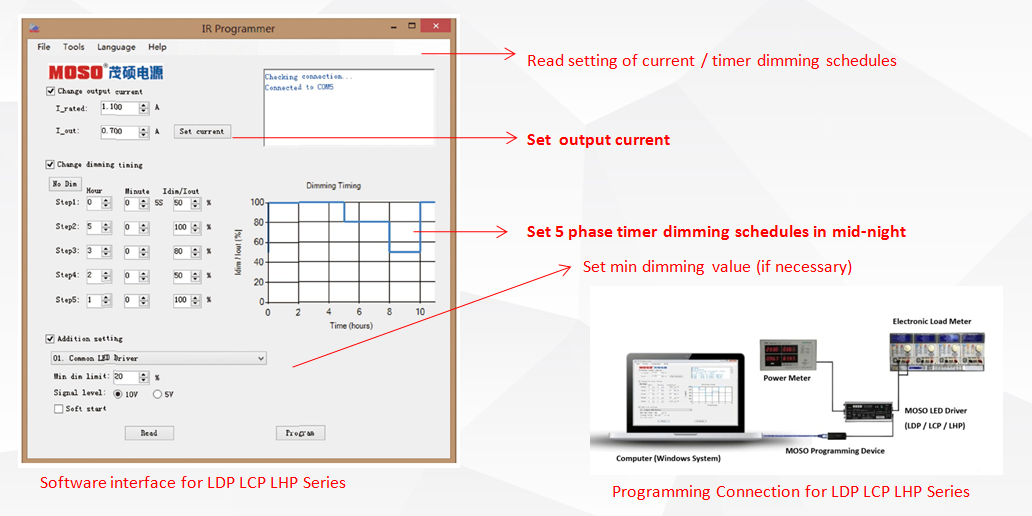

Use software to set current and step timing dimming (MOSO will provide software to our customers)

MOSO DALI LED DRIVER

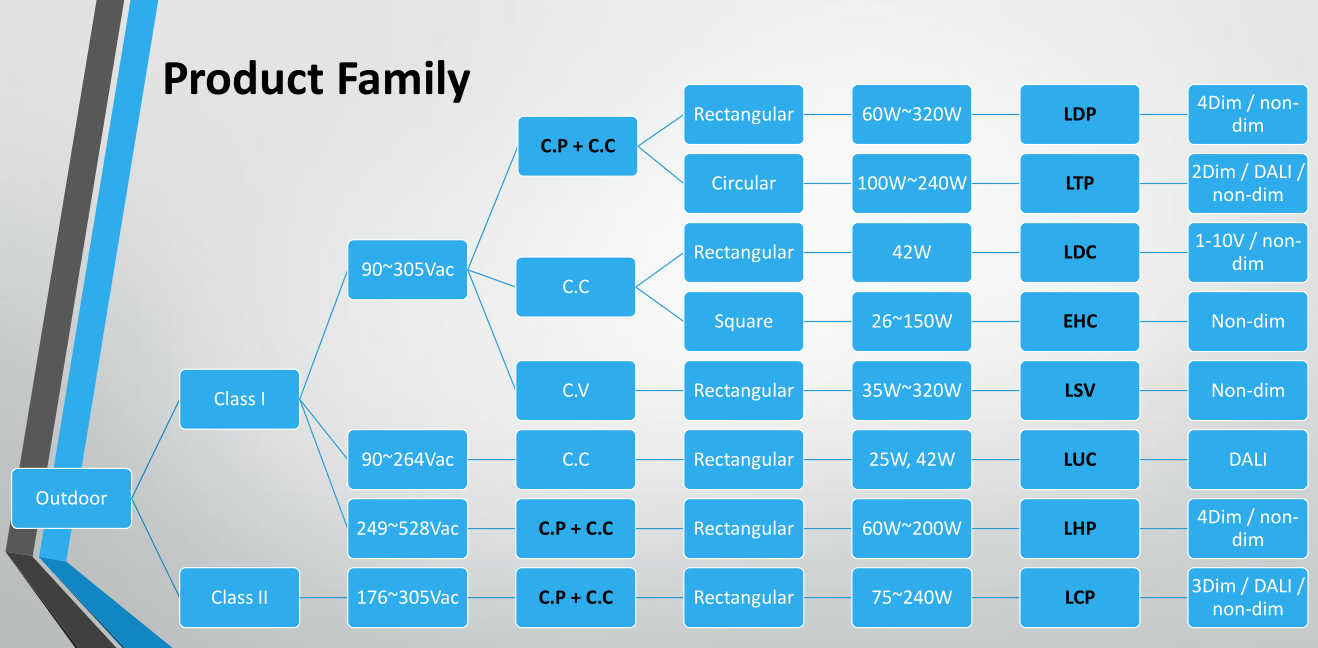

MOSO product family for your reference

MOSO will offer 5 years global warranty for our business partner. Customer can refer to warranty policy and find the closest MOSO distributors or sales representatives, to get a local technical support and replacement in case of any failure.

MOSO always dedicates to providing professional outdoor lighting solutions. If you have any need, please feel free to contact our sales team.
