Indoor mini fiber optic cable
Your message must be between 20 to 2000 characters

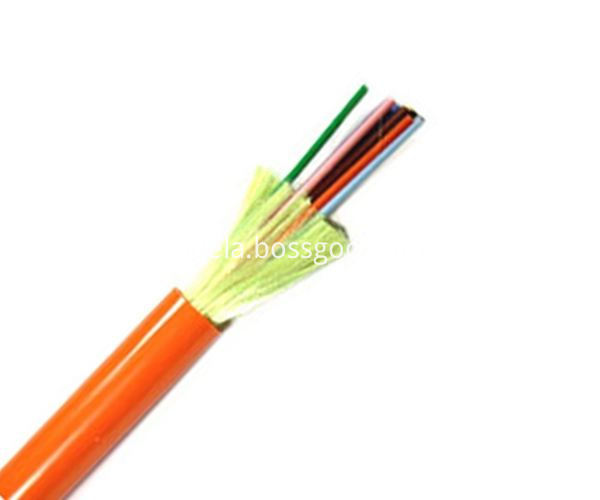

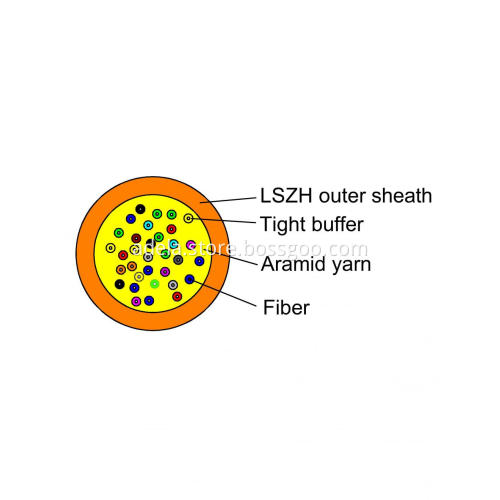

Contact NowThe indoor tight buffered cable is designed with high strength yarn member ensures high tensile strength and long term stability in transmission , Small outer diameter, lightweight, flame-retardant, soft and easy to strip. Direct splicing between tight buffered cable and need no tie-in box or pigtail. Suitable for installation, operation and convenient for maintenance.
Technical Parameters:
|
Fiber count |
4 |
6 |
8 |
12 |
16 |
24 |
48 |
|
|
Outer diameter(mm) |
4.8±0.2 |
5.2±0.2 |
6.2±0.2 |
6.8±0.2 |
7.4±0.4 |
8.2±0.4 |
12.5±0.5 |
|
|
Nominal weight(Kg/Km) |
19 |
23 |
29 |
38 |
48 |
60 |
128 |
|
|
Max. tensile strength(N) |
Short term |
270 |
330 |
480 |
600 |
660 |
720 |
1200 |
|
Long term |
90 |
110 |
160 |
200 |
220 |
240 |
520 |
|
|
Min. Bending Radius(mm) |
Dynamic |
20D |
20D |
20D |
20D |
20D |
20D |
20D |
|
Static |
10D |
10D |
10D |
10D |
10D |
10D |
10D |
|
|
Max. crush resistance (N/100mm²) |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
|
Temperature range |
-20°C~+60°C |
|||||||
Optical Performances:
|
Optical Transmission Performance |
Singlemode 1310/1383/1550/1625nm |
Multimode 850/1300nm |
|||
|
9/125μm (OS2) |
62.5/125μm (OM1) |
50/125 μm (OM2) |
50/125 μm (OM3) |
50/125 μm (OM4) |
|
|
Max.Attenuation(dB/km) |
0.36/0.36/0.25/0.35 |
3.0/0.8 |
2.7/0.8 |
2.7/0.8 |
2.7/0.8 |
|
Typ.Attenuation(dB/km) |
0.34/0.32/0.21/0.24 |
2.7/0.6 |
2.5/0.7 |
2.3/0.6 |
2.3/0.6 |
|
Bandwidth (MHz/km) |
N/A |
200/600 |
500/500 |
1500/500 |
3500/500 |
|
850nm laser bandwidth(MHz/km) |
N/A |
N/A |
N/A |
2000 |
4700 |
|
Numeriacl apartue |
0.13±0.01 |
0.275±0.015 |
0.200±0.015 |
0.200±0.015 |
0.200±0.015 |
