Hybrid cable with copper cable and 2-24fibers
Your message must be between 20 to 2000 characters
Contact NowThe Hybrid cable is designed with copper power cable and fiber optic cable togther .
Application:
1. Adapted to Outdoor distribution.
2. Access network and local network in high electromagnetic interfering places.
3. Adapted to trunk power transmission system.
4. FTTA
Technical Parameters:

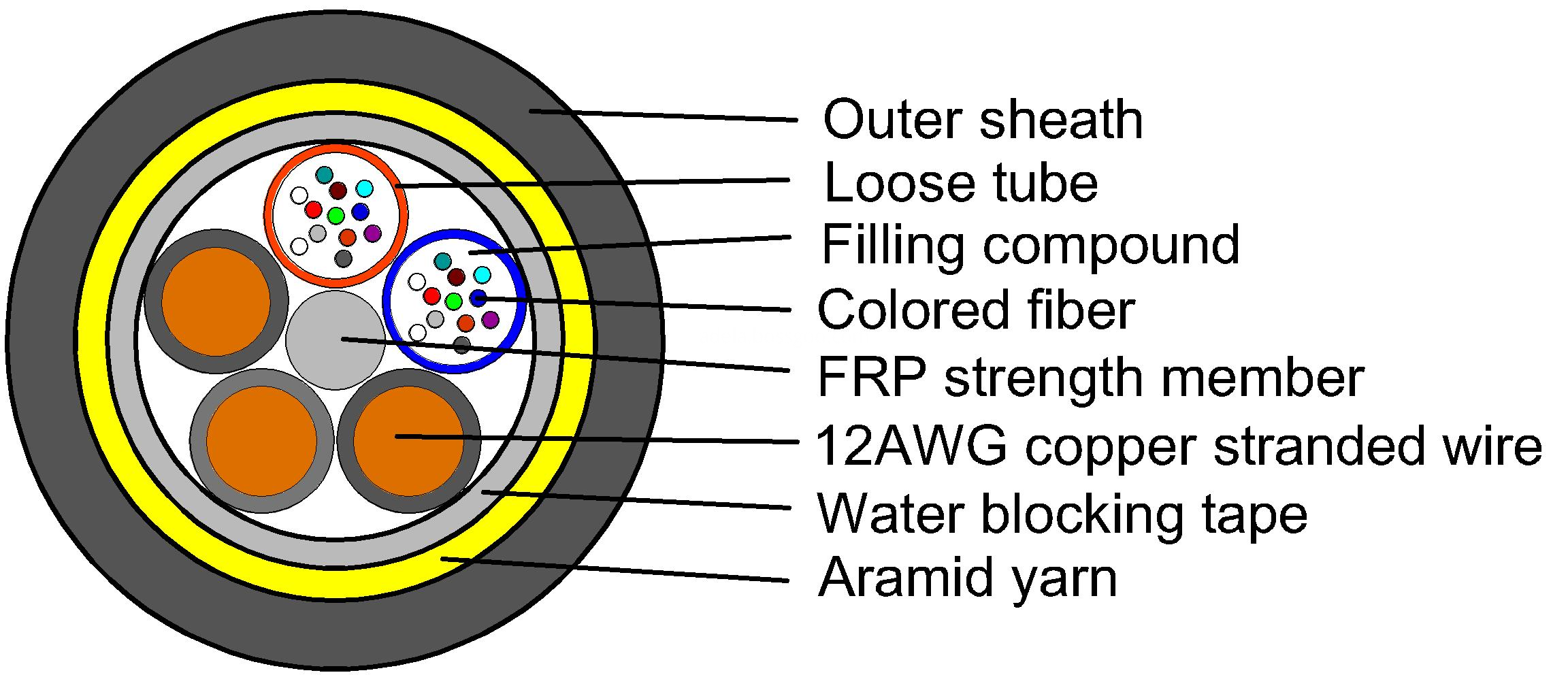

Construction of optical fiber cable.
|
Items |
Description |
|
|
Number of fiber |
2-24 |
|
|
Loose tube |
Sub-cable jacket |
PBT(Blue,Orange) |
|
Loose tube diameter |
4.0mm |
|
|
12AWG copper stranded wire |
Jacket |
LSZH (color as requirement) |
|
Max. resistance 20℃ |
5.39Ω/km |
|
|
Diameter |
4.0±0.1mm |
|
|
Strength member |
Aramid yarn |
|
|
Outer jacket |
LSZH |
|
|
Color of Jacket |
Black |
|
|
Out sheath thickness |
1.8±0.2mm |
|
|
FRP strength member diameter |
3.0mm |
|
|
Cable diameter |
15.1±0.4mm |
|
|
Approx. weight cable Kg/Km |
320 |
|
Mechanical and environmental data:
|
Temperature range |
Storage/Shipping temperature range Operating temperature range |
℃ |
-40℃ ~ +70℃ |
|
Min. Bending Radius (mm) |
Dynamic |
mm |
20D |
|
Static |
mm |
10D |
|
|
Max. Tension (N) |
Short-term |
N |
1600 |
|
Long-term |
N |
600 |
|
|
Max. Crushing Resistance (N/100mm²) |
Short-term |
N/100mm² |
1800 |
|
Long-term |
N/100mm² |
500 |
Optical Preformances:
|
Optical Transmission Performance |
Single mode 1310/1550nm |
Multimode 850/1300nm |
|||
|
9/125μm (OS2) |
62.5/125μm (OM1) |
50/125 μm (OM2) |
50/125 μm (OM3) |
50/125 μm (OM4) |
|
|
Max. Attenuation(dB/km) |
0.4/0.3 |
3.5/1.5 |
3.5/1.5 |
3.5/1.5 |
3.5/1.5 |
|
Typ. Attenuation(dB/km) |
0.34/0.21 |
2.7/0.6 |
2.5/0.7 |
2.3/0.6 |
2.3/0.6 |
|
Bandwidth (MHz/km) |
N/A |
200/600 |
500/500 |
1500/500 |
3500/500 |
|
850nm laser bandwidth(MHz/km) |
N/A |
N/A |
N/A |
2000 |
4700 |
|
Numerical aperture |
0.13±0.01 |
0.275±0.015 |
0.200±0.015 |
0.200±0.015 |
0.200±0.015 |
