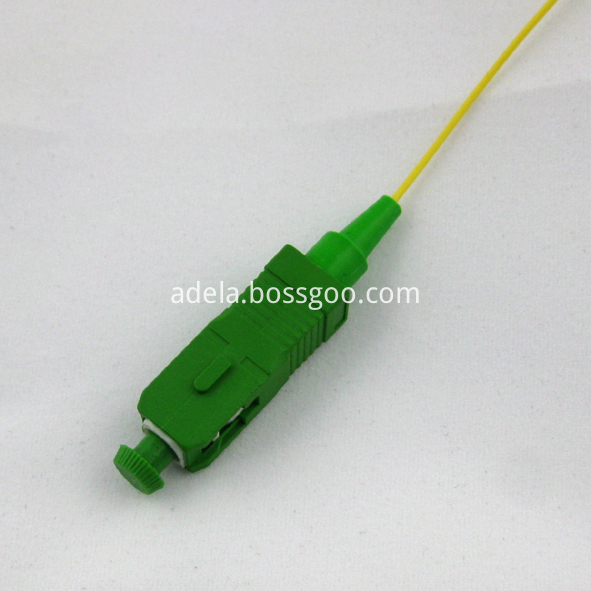

SC APC pigtail single mode 0.9mm cable
Your message must be between 20 to 2000 characters

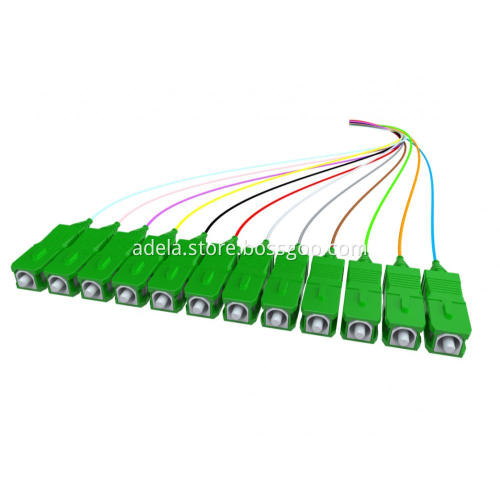

Contact NowSC APC Fiber optic pigtails are available in 1 ,6 and 12 TIA colors coded , cut to 1.5-2 meter length and factory tested with test data sheets included .The SC APC pigtails can be terminated using the adapter plates and installed in splice trays . Each color coded pigtail is factory terminated and tested through the adapter to ensure the performance of the entire system, not just the connector . SC APC pigtails are 1.5-2 meters long for easy in splicing .
Product Specifications
|
Connector A |
SC APC |
Connector B |
Unterminated |
|
Fiber Mode |
9/125μm |
Fiber Type |
Simplex |
|
Polish |
APC |
Cable Diameter |
0.9mm |
|
Jacket Material |
PVC/LSZH |
Jacket Color |
Yellow |
|
Wavelength |
1310nm/1550nm |
Durability |
>1000 Times |
|
Insertion Loss |
≤0.2dB |
Interchangeability |
≤0.2dB |
|
Return Loss |
≥65dB |
Vibration |
≤0.2dB |
|
Operating Temperature |
-40~75°C |
Storage Temperature |
-45~85°C |
