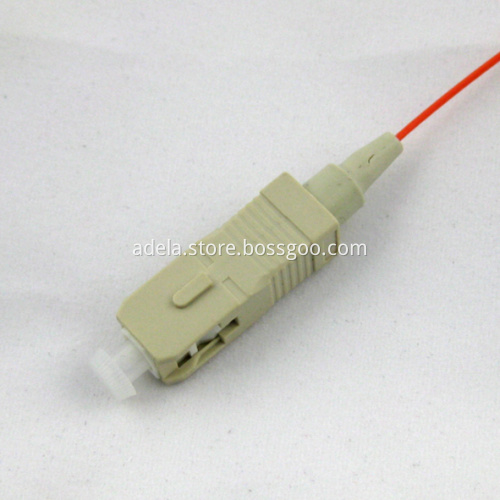

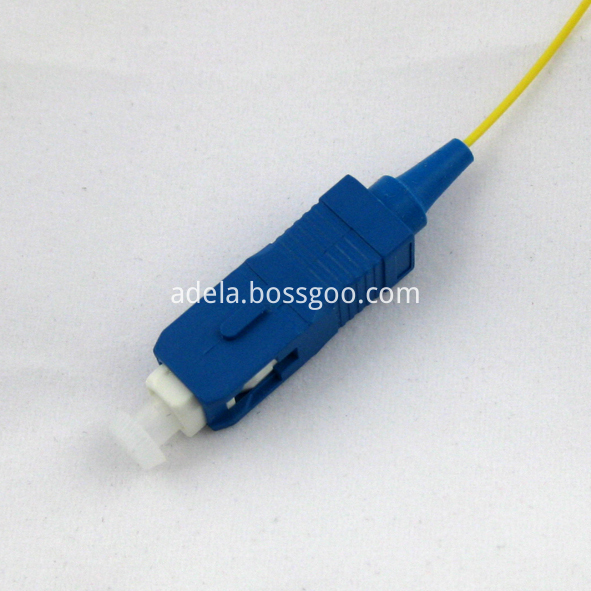

SC pigtail single mode/Multi mode 0.9mm cable
Your message must be between 20 to 2000 characters

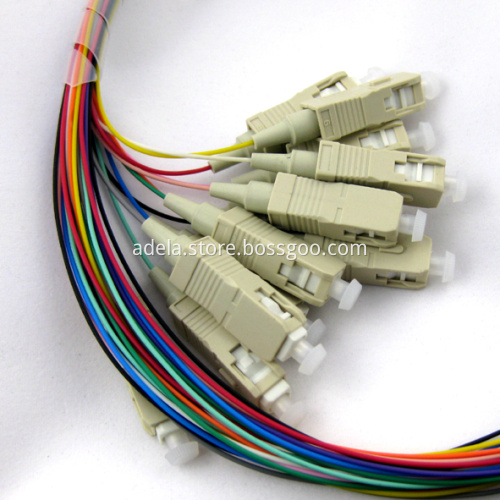

Contact NowSC Fiber optic pigtails provide a single connector terminated on 900um buffered cable. The optical fiber meets G.652D or G.657A2 bend insensitive specifications . Fibers are backward compatible with G.652D fibers for easy splicing . pigtails are provided in 1.5-2 metter length and the 12 standard TIA colors .
Product Specifications
|
Connector A |
SC |
Connector B |
Unterminated |
|
Fiber Mode |
9/125μm |
Fiber Type |
Simplex |
|
Polish |
UPC/APC |
Cable Diameter |
0.9mm |
|
Jacket Material |
PVC/LSZH |
Jacket Color |
Yellow |
|
Wavelength |
1310nm/1550nm |
Durability |
>1000 Times |
|
Insertion Loss |
≤0.2dB |
Interchangeability |
≤0.2dB |
|
Return Loss |
≥50dB |
Vibration |
≤0.2dB |
|
Operating Temperature |
-40~75°C |
Storage Temperature |
-45~85°C |
