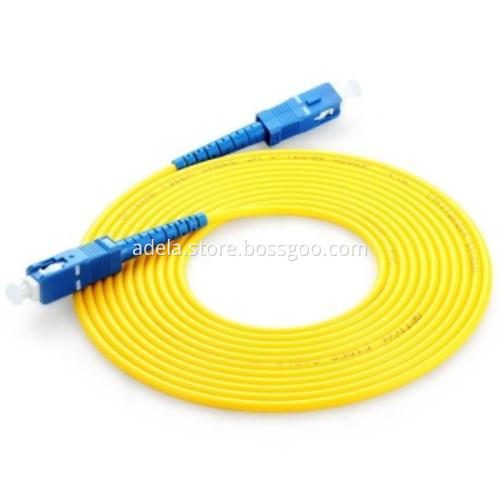

SC-SC UPC singlemode OS2 9/125 simplex patch cable
Your message must be between 20 to 2000 characters
Contact NowThe SC-SC 9/125μm single mode fiber optic cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling ,SC singlemode UPC and APC available.
Product Specifications
|
Connector Type |
SC to SC |
Jacket OD |
2.0mm |
|
Fiber Type |
OS2 9/125μm |
Jacket Color |
Yellow |
|
Polish Type |
UPC or APC |
Wavelength |
1260~1625nm |
|
Fiber Count |
Simplex/Duplex |
Jacket Material |
OFNR/OFNP/LSZH |
|
Insertion loss |
≤0.2dB |
Return loss |
UPC≥50dB APC≥65dB |
|
Minimum Bend Radius |
10mm |
Fiber Grade |
G.652/G.657 |
|
Polarity |
A(Tx) to B(Rx) |
Operating temperature |
-20~70°C |
