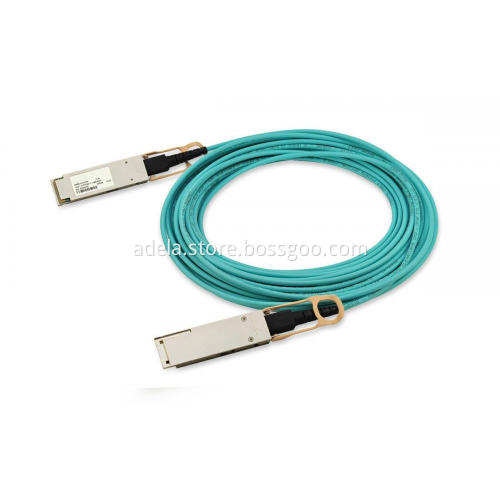

100G QSFP28 AOC Active optical cable

100G QSFP28 active optical cables (AOC) are high-performance active optical cable with bi-directional signal transmission and aggregate 100-Gbps bandwidth for both InfiniBand EDR and Ethernet 100G-SR4 applications. Compared to conventional copper cables, longer and lighter optical cables enable the ease of complicated data-center cablings. The AOCs utilize multimode fiber with 850-nm VCSELs and PIN PDs. The certificated cables have superior signal integrity and bit-error-rate, which enables reliable operation performance.

Features
 Compliant with 100GBASE-SR4 and CAUI-4 specification per IEEE 802.3bm.
 Compliant to SFF-8665 (QSFP28 Solution) Revision 1.8
 Supports 100 Gbps data rate links of up to 70m/100m via OM3/OM4, respectively.
 Low power consumption of max 2.5W
 Hot pluggable electrical interface
 Using standard 12/8 lane optical fiber with 3-mm round cable.
 0 to 70°C case temperature operating range
 RoHS-6 Compliant (lead-free)

Applications
 Ethernet for 100GBASE-SR4
 Infiniband EDR, FDR and QDR
 HPC Interconnects
 Proprietary Interconnections

Recommended Operating Conditions
