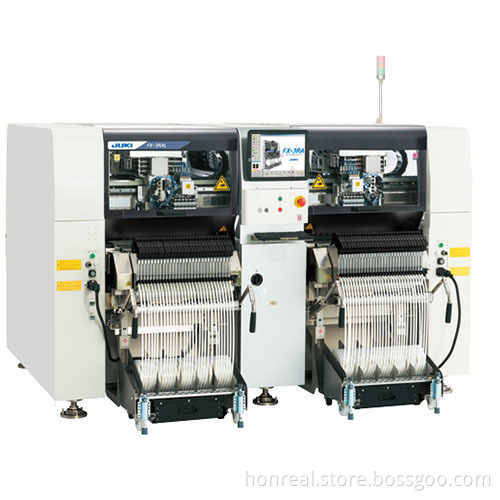

Juki FX-3RA 7R 3L High-Speed Modular Mounter
-
$10000.00≥1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
Your message must be between 20 to 2000 characters
Contact Now
High speed, high reliability modular mounter
Improve productivity, reduce rework
Designed to work with KE Series machines to form a high speed, flexible production line.
Features
|
Chip |
90,000CPH (0.040Sec. / chip / Optimum） |
1.0402mm(01005 inch) ~ 33.5mm×33.5mm
2.Laser recognition : ±0.05mm(±3σ)
3.On-the-fly centering using integrated laser
4.2 stations, 4 gantries, 4 placement heads, 24 nozzles
5.Linear servo motor XY drive with full closed-loop control
6.Holds up to 240 components
7.Electrical or mechanical feeder trolley
Specification
|
Item/Model |
High-Speed Modular Mounter |
High-Speed Modular Mounter |
|
|
Board size |
L size(410x360mm) |
yes |
no |
|
L-Wide size(510x360mm) *1 |
yes |
no |
|
|
XL size(610×560mm) |
no |
yes |
|
|
Applicability to long PWB*1 |
800×360mm |
800×560mm |
|
|
Component height |
6mm |
yes |
|
|
Component size |
Laser recognition |
0402(01005) ~ 33.5mm×33.5mm |
|
|
Placement speed (chip) |
Optimum |
0.040Sec. / chip(90,000CPH)*2 |
|
|
IPC9850 |
66,000CPH*2 |
||
|
Placement accuracy |
Laser recognition |
±0.05mm(±3σ) |
|
|
Feeder inputs |
Max.240 in case of 8mm tape |
||
Many machines are available,welcome to ask details.
Located in Shenzhen Guangdong Province, China
