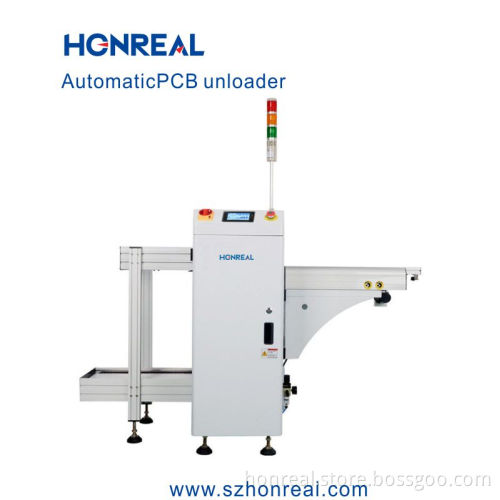

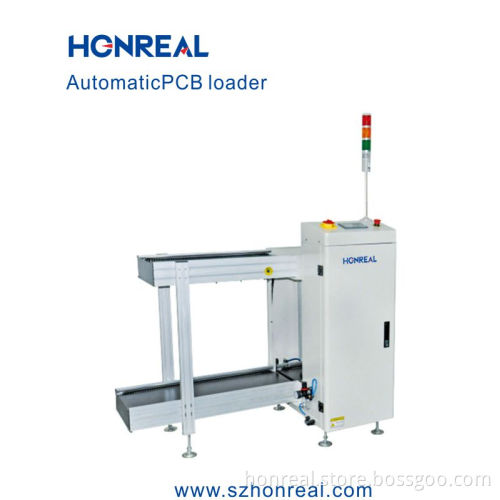

Factory price SMT Assembly Line Automatic magazine pcb Loader unloader

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product introduction:

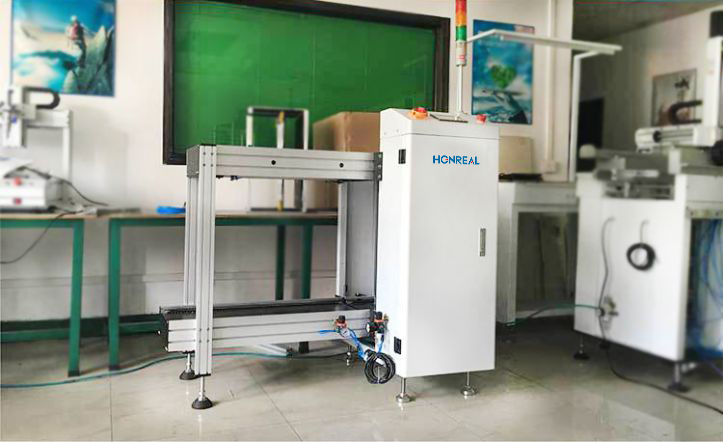

This unit is used to send PCBs out from magazine to SMT production line .
Stable and reliable PLC control system;
Easy to operate LED touch screen control interface;
The pneumatic clamps of top and bottom three point provided for the magazine alignment;
Effective thrust design can ensure the PCB is unbroken;
3magazines loading capability.
Direction from left to right or right to left(optional).
Machine always fault monitoring;
Solid and stable design;
SMEMA port is compatible;

Technical parameters
Function	This unit is used to send PCBs out from magazine to SMT production line
PCB thickness	Min0.6mm
Magazine number	Transport up:1pcs,transport down:1ps,( 54330903,or customized)
Step pitches select	1-4(10mm step pitches)
PCB loading time	Approx 6 seconds
Magazine change-over time	Approx 30 seconds
Transport direction	Left to right/right to left(optional)
Transport height	900±20mm(or customized)
Air pressure	4-6 bar, MAX10L/minute
Power supply	100-230V AC(customized) single phase, MAX 300V/A

Company	Shenzhen Honreal Technology CO.,Ltd.
Address	No15,Shangnan Hongma Road, Shajing Street, Baoan District, Shenzhen, Guangdong Province, China
Tel	+86755 2302 0279
Fax	+86 755 2330 6782
Zip code	518125
Skype/Whatsapp/Wechat	+8613715227009
