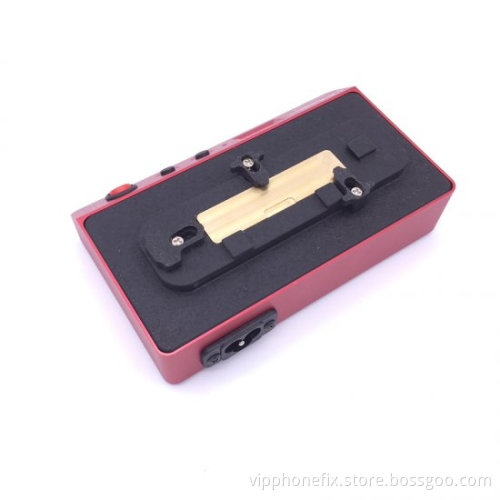

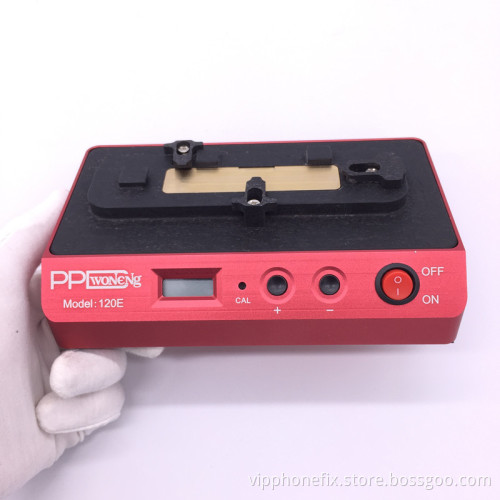

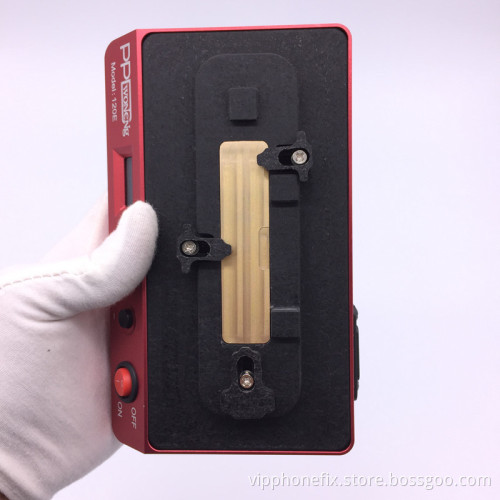

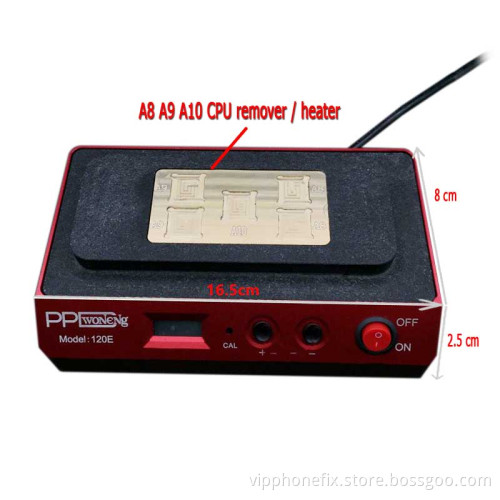

PPD120E IPhone A8 A9 A10 CPU Desoldering Rework Station

PPD 120E iPhone A8 A9 A10 CPU Desoldering Rework Station is an professional equipment that used for desoldering and soldering IC components,chips and BGA while repairing mobile phone.This desoldering machine is with control button to set temperature,which are available for iPhone A8 A9 CPU maintenance.

PPD 120E iPhone A8 A9 A10 CPU Desoldering Rework Station for Fix iPhone

Optional Voltage: 110V / 220V

Optional (stencil grooves)

Optional 1: Motherboard grooves




Optional 2: A8 A9 A10 stencil grooves




unsolder the A8 A9 CPU from iphone motherboard, don't need the hot Air Rework station, working on 230℃, it is the Desoldering Rework Station tool for unsolder iphone A8 A9 CPU.

Setting parameters (Temperature):

1:take apart screen cover 180℃-220℃
2:CPU edge glue 180℃-220℃
3:   take off A8 A9 CPU 230℃-240℃
4:   desmearing 180℃-200℃
5:   reball BGA chip 180℃-200℃
6:  soldering A8 A9 CPU 190℃-210℃
